6Mpa 2 Way 32mm Stroke 80mm Welded Hydraulic Cylinders Carbon Steel
Price:
Negotiation
MOQ:
OEM
Delivery Time:
15-45days
Brand:
JSRUIYA
Product Description

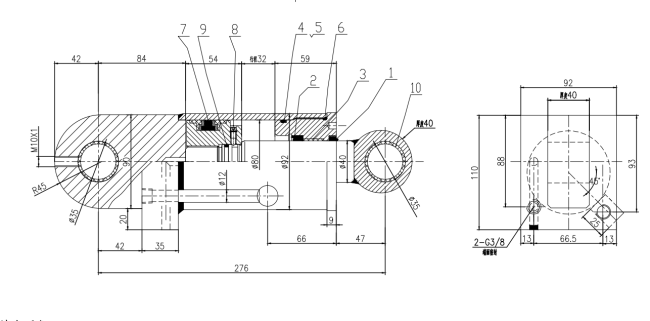

80mm Bore Heavy Duty Cylinder detail drawing
Technical Parameters:
Bore: 80mm
Rod:40mm
Stroke:32mm
Working Pressure: 6 Mpa
Installation size: 276mm
Pressure test: 15 Mpa
Piston speed: maximum 1m/s
Temperature range: -40℃ to +300℃
| Product Name | Factory Design Customized Hydraulic Cylinder |
| Rod Size | 18 mm - 2000 mm(0.71inch - 78.74 inch) |
| bore Size | 40-200mm(1.57 inch - 7.87inch) |
| Stroke | 10-15000mm(0.39 inch - 590.55inch) |
| Tipping Weight | 1 Ton - 100 Ton |
| Working Pressure | 2500psi - 8000psi(3000psi , 5000psi available) |
| Material | Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel |
| Barrel/Tube | 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. |
| 2. Technology: cold drawn ,hot rolled,forged | |
| 3. Surface Roughness: R0.16-0.32 | |
| 4. Choose by different working condition and requirements. | |
| Piston rod | 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc. |
| 2. Technology: Quenched and tempered | |
| 3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing | |
| Seal kits | 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made |
| 2. Choose by different working condition and requirements. | |
| Hydraulic Cylinder Types | Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder |
| Mounting Style | Earrings, flange, foot mounting, trunnion, cross tube, etc |
| Test | Static balance test |
| Surface treatment | Painting/sand blasting/oiled,Follow customers' requirement. |
| Application | Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc |
Hydraulic Cylinder Available Size
2 X 10 Hydraulic Cylinder
2 X 12 Hydraulic Cylinder
2 X 16 Hydraulic Cylinder
2 X 24 Hydraulic Cylinder
2 X 6 Hydraulic Cylinder
2 X 8 Hydraulic Cylinder
2.5 X 8 Hydraulic Cylinder
2x10 Hydraulic Cylinder
3.5 X 8 Hydraulic Cylinder
3x10 Hydraulic Cylinder
3x12 Hydraulic Cylinder
3x24 Hydraulic Cylinder
3x8 Hydraulic Cylinder
4 X 4 Hydraulic Cylinder
4 X 24 Hydraulic Cylinder
4 X 30 Hydraulic Cylinder
4 X 36 Hydraulic Cylinder
4 X 8 Hydraulic Cylinder
4x16 Hydraulic Cylinder
4x24x2 Hydraulic Cylinder
5 X 30 Hydraulic Cylinder
5x24 Hydraulic Cylinder

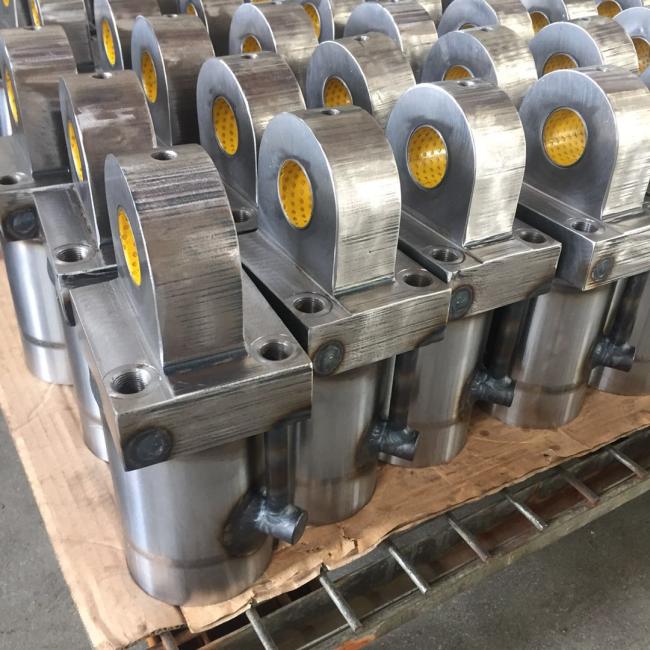

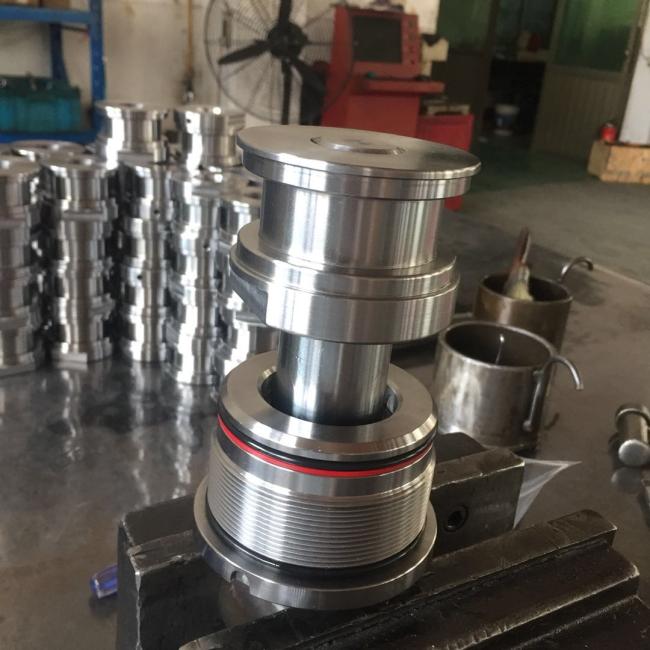

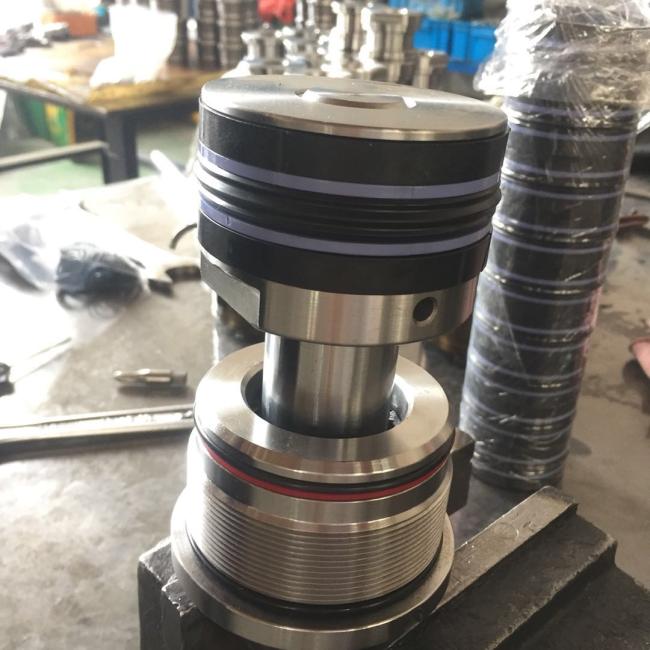

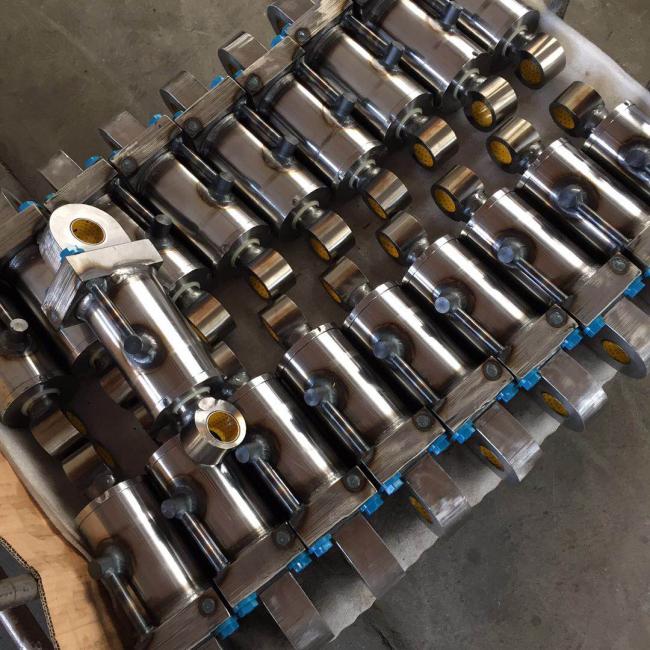

Product Image:
Before Purchase, Pls Contact Me , We Can Discuss The Cylinder Details .
