OEM Tractors Attachments Tillers Spreaders Tile Plow Hydraulic Cylinder
OEM Customized Made Tractors Attachments Farm Implements Sprayers Tillers Spreaders Tile Plow hydraulic cylinder
JSRUIYA Hydraulic cylinders can be found in almost any industry that handles heavy loads, including manufacturing, agriculture, construction, and even medicine. Specific applications include the following:Excavators,Balers,Cranes,Hydraulic presses,Packing machines,Loaders
Hydraulic cylinders offer a reliable and efficient force-generation mechanism for these and similar applications. Some industries have specific constraints that influence the choice of a hydraulic cylinder. Food and beverage applications, for instance, must frequently sanitize all equipment, including the lifting and packing machines that might be powered by hydraulic cylinders. For these clients, we offer specialized stainless steel options that can withstand frequent sanitation.
We start from scratch to guarantee our customers the utmost #flexibility! Our factory is equipped with an internal stock of raw materials that we can process right from the cutting stage, to then turn, mill, #weld, honing, assemble and test!

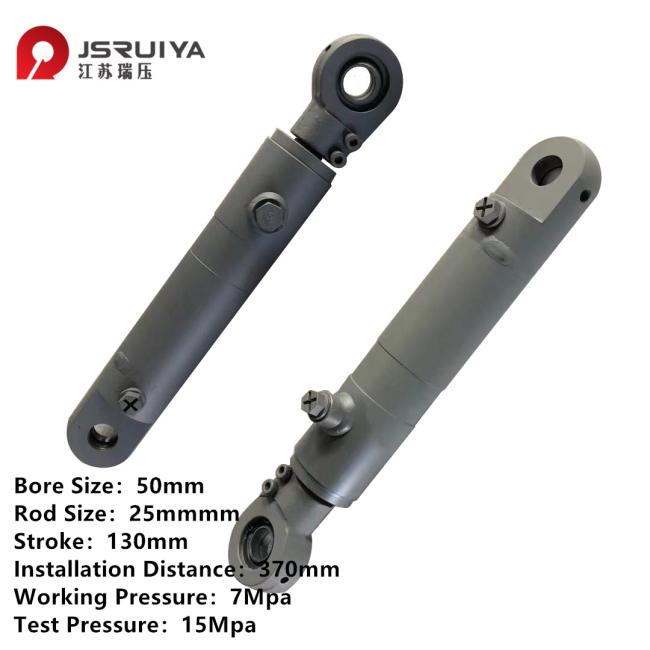

Technical Parameter:
| Item | Custom Piston Welded Hydraulic Cylinder |
| Single Acting/Double Acting | Single Acting |
| Duty Rating | Heavy Duty |
| Bore Dia. | 50mm |
| Stroke Length | 130mm |
| Rod Dia | 25mm |
| Installation Distance: | 370mm |
| Working Pressure | 7Mpa |
| Test Pressure | 15Mpa |
| Piston Material | Ductile Iron |
| Tubes | Precision Honed Steel |
| Tie Rods | High Tensile |
| Finish | Gray |

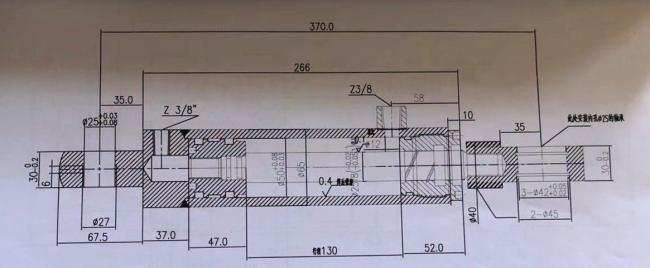

We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.
