3G 4G ESIM LTE Wireless WIFI Router 4pcs Antennas 300Mbps Global Bands 10GB Free Data

Price Negotiable
Price: USD38.5/pc
MOQ: 5pcs
Delivery Time: 25-35 working days
Brand: ZBT & OEM
Product Description

Product selling points:



This model support eSim and global frequency bands, with 10GB FREE mobile data traffic, please contact us if any questions,thanks.



Freqquency bands: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B9/B13/B17/B18/B19/B20/B25/B26/B28 /B66;
LTE-TDD: B34/B38/B39/B40/B41 ;

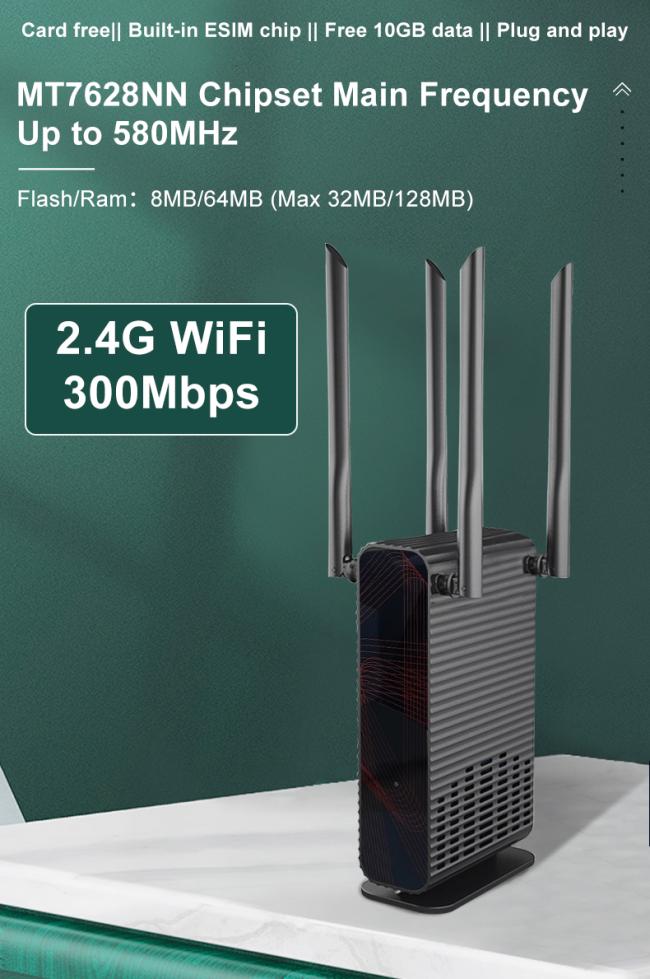

Adopt MT7628NN chipset,MIPS24KEc architecture CPU,main frequency is up to 580MHZ;
Support 2.4G, rated up to 300Mbps;
Support 802.11 N/G/B protocols;
MT7628NN chipset integrates 64MB DDR2, match with 8MB Nor Flash;
1*WAN and 2*LAN 100Mbps adaptive network port, support automatic flip (Auto MDI/MDIX);
Support "one-click flash mode",Long press the reset button to boot and then will enter the rescue flash mode;
Built-internal 4G module to support 3G&4G function;
One standard SIM card slot , support SIM card,also support eSim;
External high gain omnidirectional antenna with 360o wireless signal;
This product supports hardware watchdog function, when the routing system fails, it will restart the device automatically.



Chip
Adopt MT7628NN Chipset,MIPS24KEc architecture CPU,main frequency is up to 580MHZ
2.4G WIFI chip
MT7628NN chipset integrates 2.4G WIFI function, rated up to 300Mbps
RAM
DDR2 64MB
FASH
Nor Flash 8MB
Do not support NAND Flash


Network port
1*WAN,100Mbps support automatic flip(Auto MDI/MDIX)
IEEE 802.3/802.3u,802.n/g/b
2*LAN,100Mbpssupport automatic flip(Auto MDI/MDIX)
IEEE 802.3/802.3u,802.11n/g/b
SIM card slot
1*SIM slot,support SIM/USIM..
Power
DC5.0*2.1MM port
Reset button
1* reset button
Antenna
2*2.4G & 5dbi external Omnidirectional antennas
2*4G 5dbi internal Omnidirectional antennas
4G frequency bands
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B9/B13/B17/B18/B19/B20/B25/B26/B28/B66 TDD: B34/B38/B39/B40/B41
