Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure
Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot
ZBT-WE2416
- QCA9531 chipset
- 16MB Flash+128MB RAM
- 2.4G 300Mbps wireless rate
- 1*WAN port+4*LAN ports+1*USB port+1*TF card slot
- 1*SIM card slot (Lock version)
- Default version is Mini-PCIE slot, Reserved design M.2 interface for 5G module (If you need M.2 interface, please tell me in advance)
- Preload English openwrt firmware, support flash customer firmware
Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot
Product Specification
| Hardware | |
| Main Chipset | QCA 9531 chipset |
| RAM | DDR2 128MB |
| SPI FLASH | 16MB |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a IEEE 802.3, IEEE 802.3u |
| RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; |
| Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER |
| Work Channel | 2.4GHz choose :1-13 |
| Wireless Rate | Max 300Mbps |
| Work Frequency | 2.4GHz |
| Antenna | 4 removable antenna (With 3G or 4G module) |
| Interface |
1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) |
| LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
| Button | Reset/WPS |
| Max Power consumption | < 12W |
| Dimension(L*W*H) | 141*85*26MM |
| Others | |
| Work Environments |
Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
| Adapter | 12V 1A |
| Authentication |
FCC & CE certifications |
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot
Product Application Pictuers

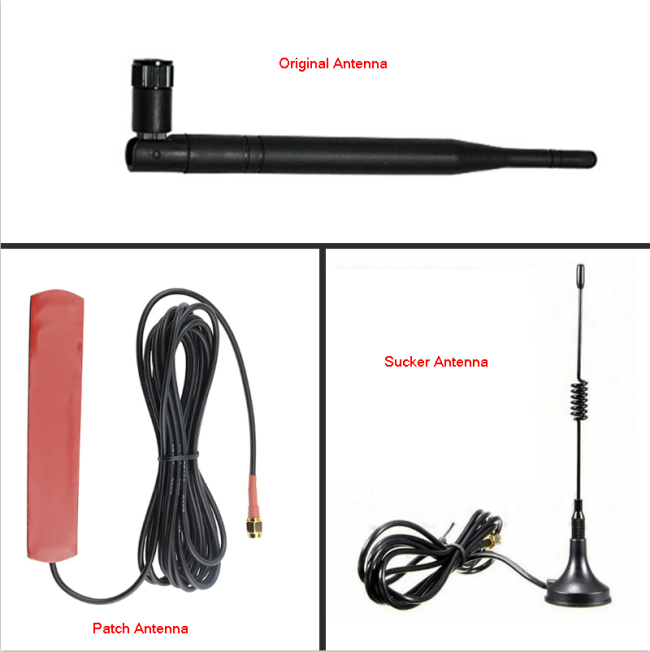

Antennas Choices
According to different application, maybe some customers need other kinds of antennas, the below is some antennas you can check. The first version is our original version antennas, if you need patch antennas or sucker antennas, please contact me in advance.
