Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
Dual Band Gigabit Mesh System Mesh Wifi Router Signal Extend For Home Wifi Coverage
What's the differences between Wifi Reapter and Mesh Router:
1. Larger Wi-Fi indoor Coverage: About 5,500 sq.ft for one pack
2. Easy management: No need setting, out of the box. One Wifi, one password.

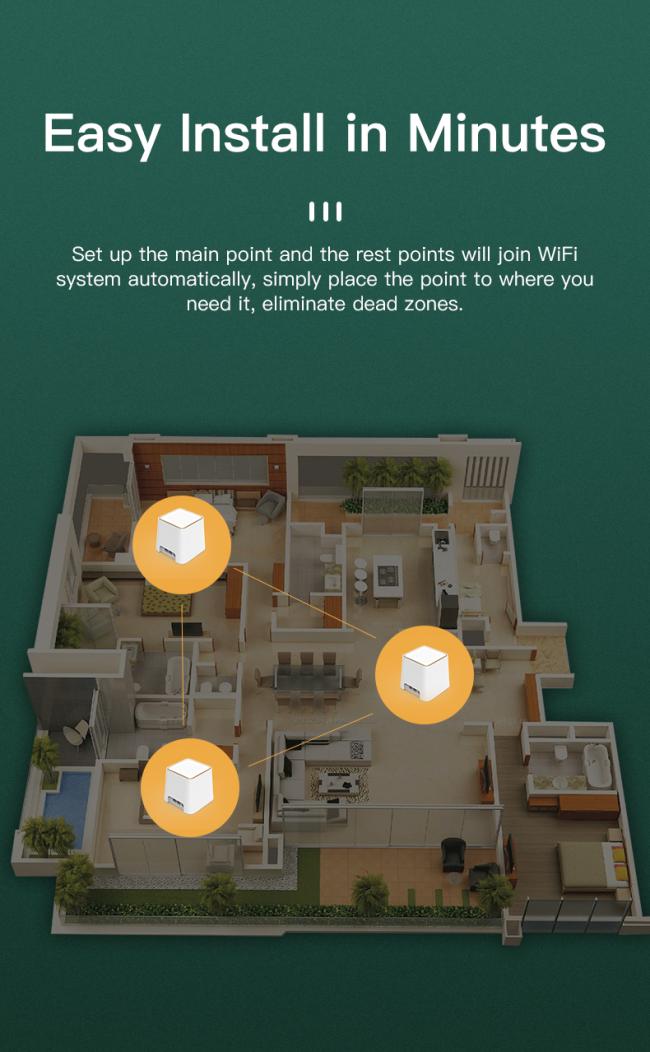

3. Wireless roaming: 3 pcs mesh devices connect network automatically
Main Features:
- Using RTL8197F solution, MIPS 24Kc, main frequency up to 1GHZ
- Protocol: IEEE802.11n/g/b/a/ac and IEEE802.3/802.3u/802.3ab
- 2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, both support 2T2R
- Using high-speed 128MB DDR2, with 16MB Nor Flash
- 1WAN, 1LAN full 1000M adaptive network port, support auto flip (Auto MDI/MDIX)
- Support "one-key flashing mode"
- Support WIFI MESH function
- Easy Set up, web management
- Built-in high-gain Omnidirectional 360 degree antennas
Specification:
| Processor | RTL8197F MIPS 24Kc, 1GHZ main frequency |
| 2.4G WIFI Chipset |
RTL8197F integrates 2.4G WIFI function IEEE 802.11n/g/b, maximum rate 300Mbps, 2T2R |
| 5.8G WIFI Chip | RTL8812 IEEE 802.11ac/a, maximum rate 867Mbps, 2T2R |
| Ram | DDR3 128 MB |
| Flash | Nor Flash 16 MB |
| Ethernet interface |
1* Wan port, 1000Mbps, Support Auto MDI/MDIX Protocol: IEEE 802.3/802.3u/802.ab |
|
1* Lan ports, 1000Mbps, Support Auto MDI/MDIX Protocol: IEEE 802.3/802.3u/802.ab |
|
| Power interface | DC5.0*2.1MM port |
| Button | 1*reset button |
| Antennas | 2*omnidirectional 3dbi 2.4G & 5.8G dual-band antennas |
| Network indicator |
Red light means no internet. Green light means internet is ready |
