Openwrt System 2.4GHz 300Mbps 3G 4G LTE Module 802.11n/g/b

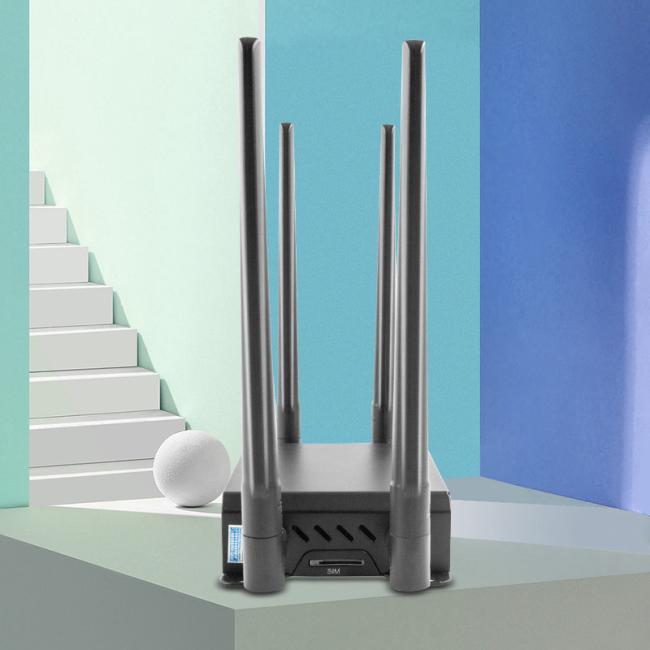

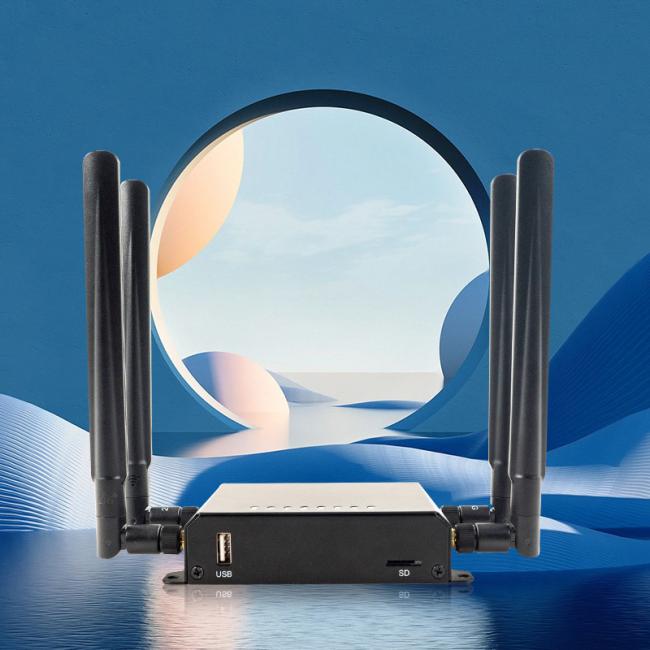

3G/4G LTE Module Lede 300Mbps Wireless Router 802.11n/g/b Metal Case Openwrt System
Simple Introduction
The WE827 uses in the latest Mediatek MT7620A wireless solution, performs better and more function. Stable wireless performance, 2.4G 300Mbps. Also support 3G&4G (3G&4G PCIE mode is necessary). Provide 1 USB2.0 interface, 1 Micro slot.
Product Feature
1). Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
2). Support 802.113/802.11U protocol,5*10/100Mbps.Auto MDI/MDIX
3). 1 USB 2.0 data interface
4). 1 Micro SD Card Slot
5).Support 3G&4G
Product Specification
| Hardware | ||
| Main Chipset | MT7620A | |
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 32MB) | |
| Protocol | IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u | |
| RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
|
|
| Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
|
|
| Work Channel | 2.4GHz choose :1-13 | |
| Wireless Rate | Max 300Mbps | |
| Work Frequency | 2.4GHz | |
| Antenna | 2*detachable 5dBi antenna | |
| Interface |
1*PCI-E slot 1* Drawer type SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100M WAN port(Auto MDI/MDIX) |
|
| LED | Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12W | |
| Dimension(L*W*H) | 141*85*26MM | |
| Software | ||
| WAN Type | PPPoE.Dynamic IP. Static IP | |
| Work Mode |
AP; Router; |
|
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwareding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security |
Dos,SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
| DDNS | Support | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Ctrl | Support | |
| Static Router | Support | |
| System Log | Support | |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
|
| Others | ||
| Work Environments |
Operating Temperature:0℃ ~ 40℃； Operating Humidity:10%~90% non-condensing |
|
| Adapter | 12V 1A | |
| Authentication | CE, FCC, RoHs | |
| Other accessories |
Power adapter
|
|
