300Mbps 4g Hotspot Openwrt Router 12v 2.4ghz MT7620A
4G Hotspot Openwrt Router Stable Performance 12v 2.4ghz 300Mbps Wifi IP 192.168.1.1 Metal Case
1. Simply Description:

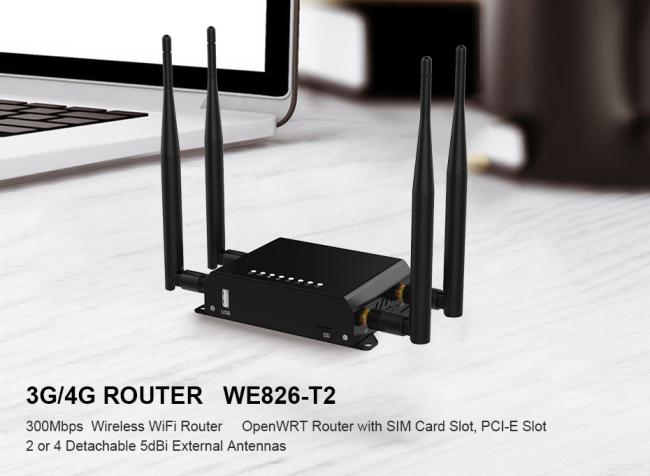

The WE826-T2 uses in the latest Mediatek MT7620A wireless solution, performs better and more function. Stable wireless performance, 2.4G 300Mbps. Also support 3G&4G (3G&4G PCIE mode is necessary). Provide 1 USB2.0 interface, 1 Micro slot.
2. Product Feature:
1).Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
2).Support 802.113/802.11U protocol, 5*10/100Mbps.Auto MDI/MDIX
3).1*USB 2.0 data interface
4).1* Micro SD Card Slot
5).Support 3G&4G after install 4G module
3. Specification:
| Band & Frequency | ||
| FDD LTE | B1/B2/B3/B4/B5/B6/B7/B8/B28 | |
| TDD LTE | B40 | |
| WCDMA | B1/B2/B5/B8 | |
| GSM | B2/B3/B5/B8 | |
| Hardware | ||
| Main Chipset | MT7620A | |
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 32MB) | |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u |
|
| RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; |
|
| Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
|
|
| Work Channel |
2.4GHz choose :1-13 5GHz choose :149, 153, 157, 161, 165 |
|
| Wireless Rate | Max 300Mbps | |
| Work Frequency | 2.4GHz | |
| Antenna | 4*detachable antennas | |
| Interface |
1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port(Auto MDI/MDIX) |
|
| LED | Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12W | |
| Dimension(L*W*H) | 141*85*26MM | |
| Software | ||
| WAN Type | PPPoE,Dynamic IP, Static IP | |
| Work Mode |
AP; Router; |
|
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwareding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security |
Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
| DDNS | Support | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Ctrl | Support | |
| Static Router | Support | |
| System Log | Support | |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
|
| Others | ||
| Work Environments |
Operating Temperature:0℃ ~ 40℃； Operating Humidity:10%~90% non-condensing |
|
| Adapter | 12V 1A | |
| Authentication | CE, FCC, RoHs | |
| Other accessories |
Power adapter
|
|
Detailed Pictures:
