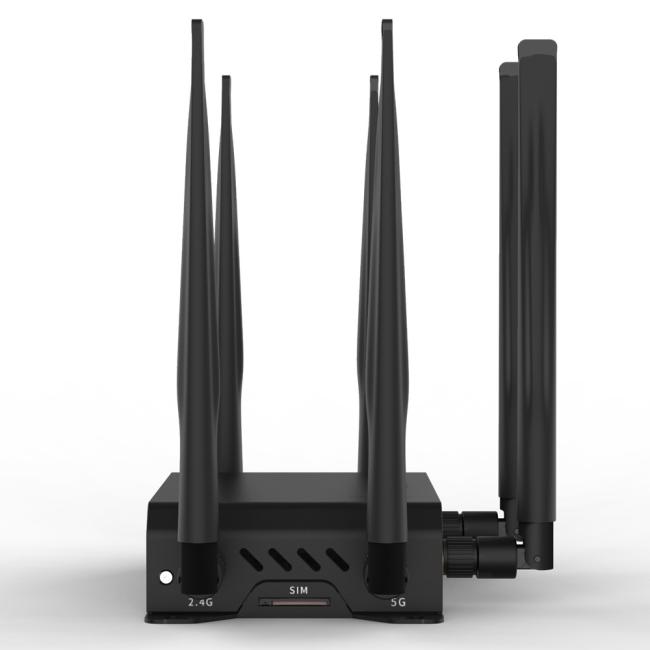

MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
5G CPE Router, 5G Wireless Router With Gigabit Ports MTK7621 Chipset
WG827 is used in the latest Mediatek MT7621DA wireless solution. Stable wireless performance. 2.4G wireless rate is 300Mbps. 5 Gigabit Ports, including 1 WAN port+4 LAN ports.
Production Feature
- Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 300Mbps.

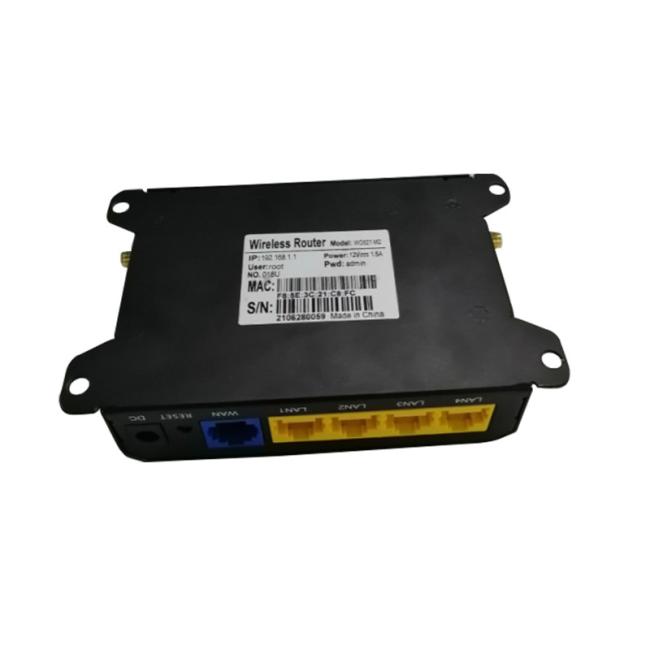

- 5*10/100/1000 Mbps Ports (1 WAN port+4 Lan ports)
- Support 4G/5G function (It is need install 4G/5G module in side of router)
- Built in M.2 interface to install 4G/5G module.
- Support WPA, WPA2 encryption to protect your data transmission.
- Small size 5G wifi router
Product Specification
| Hardware | |
| Main Chipset | MT7621DA |
| RAM | DDR3:128MB (MAX :128MB) |
| SPI FLASH | 16MB (MAX:32MB) |
| Protocol | IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u |
| RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
|
| Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER
|
| Work Channel | 2.4GHz choose :1-13 |
| Wireless Rate | Max 300Mbps |
| Work Frequency | 2.4GHz |
| Antenna | 6*detachable 5dBi antenna |
| Interface |
1*M.2 slot (Default),reserve PCI-E interface design. 1* Standard SIM card slot 1*10/100/1000M WAN port(Auto MDI/MDIX) |
| LED | 1*LED state indication ( 1).Boot:Red.2).Finish boot no connected internet:Green 3).Finished boot and connected internet:Blue) |
| Button | Reset |
| Max Power consumption | < 12W |
| Dimension(L*W*H) | 141*85*26MM |
| Others | |
| Work Environments |
Operating Temperature:0℃ ~ 40℃； Operating Humidity:10%~90% non-condensing |
| Adapter | 12V 2A |
| Authentication | CE, FCC, RoHs |
| Other accessories |
Power adapter
|
