Windmill 40T Automatic Pipe Roller For Welding CW / CCW Rotation
Price:
6200USD
MOQ:
1set
Delivery Time:
15days
Brand:
weldsuccess
Product Description
Tank Rotators for Wind Tower Welding , Automatic Pipe Welding Center for Windmill Manufacturer
1. Main features
The standard models of our roller beds have the following features:
- Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
- Schneider inverter to realize VFD speed control and synchronous rotation of rollers;
- Roller distance is self-aligned and roller surrounding angle among 45°～110°;
- All motion parts have lubrication system;
- Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
- Lifting lug on the base of roller bed;

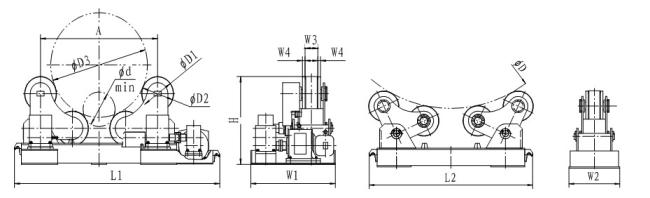

2. Main Parameters
| Model | HGZ5 | HGZ10 | HGZ20 | HGZ40 | HGZ60 | HGZ80 | HGZ100 | HGZ150 | HGZ200 | |
| Max loading T | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | 200 | |
| Suit diameter mm | Min | 250 | 320 | 500 | 600 | 750 | 850 | 1000 | 1200 | 1500 |
| Max | 2300 | 2800 | 3500 | 4200 | 5000 | 5500 | 6000 | 6500 | 8000 | |
| Rubber Roller mm | Dia | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 550 | 550 |
| Width | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Metallic roller mm | Dia | 244 | 294 | 344 | 394 | 444 | 494 | 494 | 540 | 540 |
| Width | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 100 | |
| Linear speed m/h | 6--60 | |||||||||
| Speed Control | VFD | |||||||||
| Motor power kW | 0.75 | 1.1 | 1.5 | 3 | 4 | 4.4 | 4.4 | 5.5 | 7.5 | |
| Above are our standard models and parameters, and it can be designed and manufactured on request. | ||||||||||
*We reserve the right to alter specifications without prior notice.
3. Introduction:
This series is self-alignment/self centering type. Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.
