150mm 10000KG Pipe Rotary Welding Positioners Heavy Duty
10000KG Heavy Duty Pipe Welding Positioner For Welding Positioning
Introduction
Rotary welding positioners can be devices that are a must-have for a factory or company looking to increase productivity
when welding a product. These welding positioners act similarly to vertically mounted rotary indexing tables, with a 360
degree rotational range while holding a part or product to be modified or assembled.
Main Parameters
|
Model |
SLB100 |
|
Max loading KGs |
10,000 |
|
Rated eccentricity mm |
150 |
|
Worktable diameter mm |
Φ800 |
|
Worktable center height mm |
550—1550 |
|
Worktable elevation stroke mm |
1000 |
|
Worktable elevation speed mm/min |
3000 |
|
Elevation motor power kW |
3kW*2 |
|
Worktable rotation speed rpm |
0.5 |
|
Worktable rotation angel |
±360° |
|
Worktable rotation motor power kW |
4 |
|
Powered column and idle column sizes (L*W*H) mm |
1200*2200*3300 |
|
Power supply |
380V 50HZ 3P or tailor made |
|
Above are our standard models and parameters, and it can be designed and manufactured on request. |
|
Main features
The standard models of our double column elevating welding positioners have the following features:
- Free standing, robust all steel fabrication;
- Fully machined turntable of various sizes with centering grooves and T-slots;
- Sand blasting treatment to main welding parts before painting;
- All motion parts have lubrication system;
- Main electric elements are ABB/Siemens brands;
- Supplied individually as standard;
- Hand pendant with Forward&Reverse Rotation and UP&DOWN buttons are standard;
- Lifting lug;
- Standard color:
Supply range
- Double column elevating welding positioners (including driving column, idle column, elevating unit, worktable, etc) 1set
- Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
- Technical documents (with manual book, conformity certificate, packing list, etc) 1set

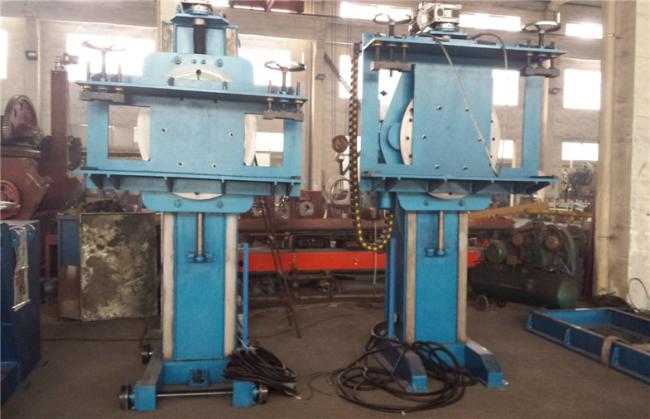

rotary welding machine photo
