Hydraulic Beam Welding Machine
Hydraulic Electron Beam Welders Automatic H Beam Production Line
Quick Detail
- This overturning machine is mainly used for overturning the T-shaped or H-shaped beam 90 degrees so as to feed to next stage for welding;
- It’s hydraulic type overturning. Three oil cylinders drive 3pieces of L-shaped rack turn 90 degree synchronously;
- Beam welding structure;
1. Introduction
This overturning machine is mainly used for overturning the T-shaped or H-shaped beam 90 degrees so as to feed to next stage for welding. It’s hydraulic type overturning. Three oil cylinders drive 3pieces of L-shaped rack turn 90 degree synchronously.
It also can be used in other applications. We also welcome special requirements.
2. Main Parameters
|
Model |
FZ90 |
|
Suitable H-beam flange width (mm) |
200—800 |
|
Suitable H-beam web height (mm) |
200—2000mm |
|
Suitable work-piece weight (t) |
≤20T |
|
Overturning oil cylinder diameter (mm) |
φ125 |
|
Max pressure of hydraulic system (MPa) |
14 |
|
Above are our standard models and parameters, and it can be designed and manufactured on request. |
|

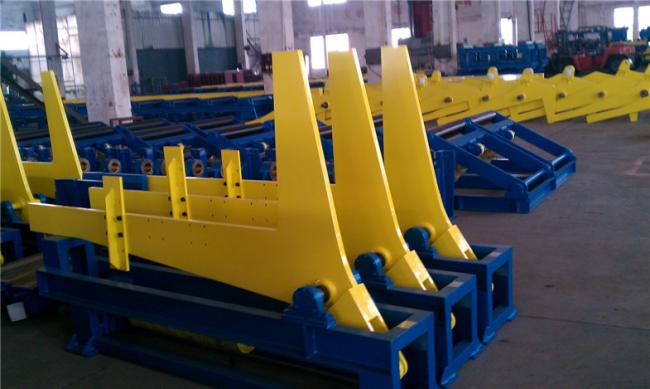

3. Reference photo
4. Comparative advantage
- ISO9000&CE certified;
- International warranty;
- Punctual delivery;
- Professional and experienced engineer team to ensure the advanced design about structure and electric;
- Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
- Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
- Optimum materials and outsourcings to ensure the best performance;
- Commissioning and testing before delivery;
- Factory inspection is encouraged;
