Tra Cart Beam Welding Line
Tra-cart Beam Welding Machine with Heavy Duty Loading Capacity
Quick Details
- This equipment is a kind of auxiliary transporting equipment for H-beam production line;
- Beam welding structure with enough capacity and intensity;
- After welding of one seam on work-piece, it can be transported to the other welding position;
- Special design is available;
1. Introduction
This equipment is a kind of auxiliary transporting equipment for H-beam production line, 2 sets of them work at the same time, for conveying H-beam among different working position. After welding of one seam on work-piece, it can be transported to the other welding position. It has merits of high efficiency, accurate and reliable.
It also can be used in other applications. We also welcome special requirements.
2. Main Parameters
|
Model |
YGJ15 |
|
Lift weight |
20T/group |
|
Lift stroke |
80mm |
|
System pressure |
16Mpa |
|
Oil cylinder diameter |
φ80mm×2 |
|
Travel motor power |
1.5KW |
|
Travel speed |
≈5m/min |
|
Rail center distance |
700mm |
|
Above are our standard models and parameters, and it can be designed and manufactured on request. |
|

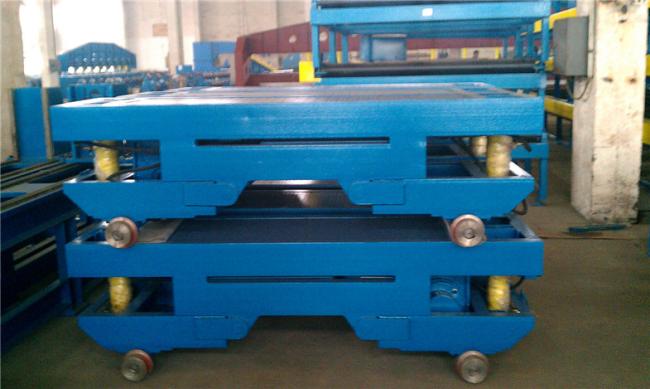

3. Reference photo
4. Comparative advantage
- ISO9000&CE certified;
- International warranty;
- Punctual delivery;
- Professional and experienced engineer team to ensure the advanced design about structure and electric;
- Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
- Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
- Optimum materials and outsourcings to ensure the best performance;
- Commissioning and testing before delivery;
- Factory inspection is encouraged;
