Baffle Assembling Box Beam Welding Machine MIG / CO2 Welding
Price:
1800USD
MOQ:
1set
Delivery Time:
15working days
Brand:
weldsuccess
Product Description
Baffle Assembling Machine for Box Column Production Line
Workflow for Fully Box Column Production Line
1. Main Parameters
| Model | GZ12 | GZ15 |
| Suitable work-piece size (mm) | 300—1200 | 300—1500 |
| Work-piece thickness (mm) | ≦80 | ≦80 |
| Tilt speed (rpm) | 1 | 1 |
| Worktable load capacity (kg) | 1500 | 1500 |
| Rotation center height (mm) | 1000 | 1200 |
| Worktable tilt angle (°) | ±180° | |
| Power supply | AC380V, 50HZ, 3P or tailor made | |
| Above are GUOHENG standard models and parameters, and it can be designed and manufactured on request. | ||
*We reserve the right to alter specifications without prior notice.
2. Introduction

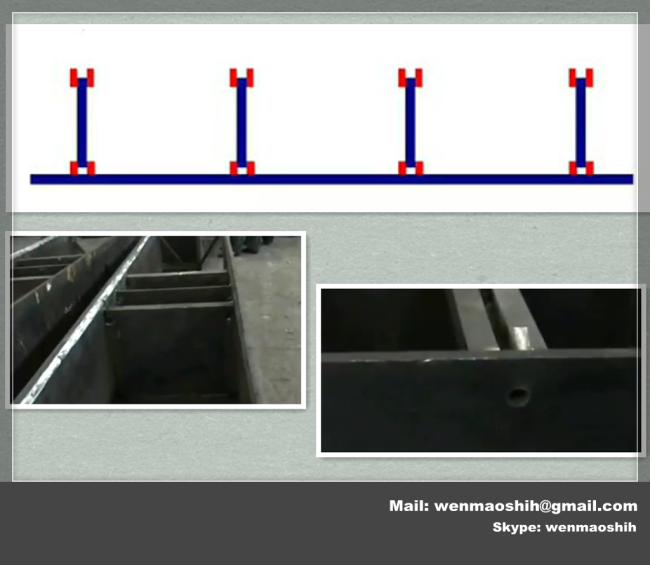

According to box beam welding technologies, electro-slag welding is required. The baffle plate has holes for electro-slag welding. This baffle assembling machine is auxiliary equipment and improves the baffle assembling efficiency greatly.
The baffle assembly machine adopts gas cylinder to clamp and positioning, and then tack welding or full welding. It can ensure the accurate positioning of box-beam baffle assembly and prevent the box-beam deformation during welding.

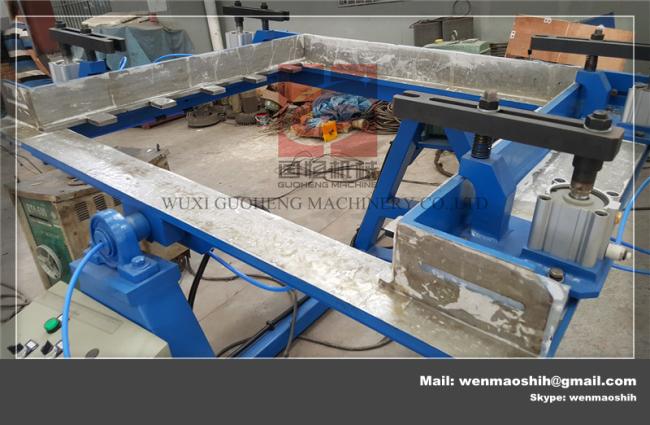

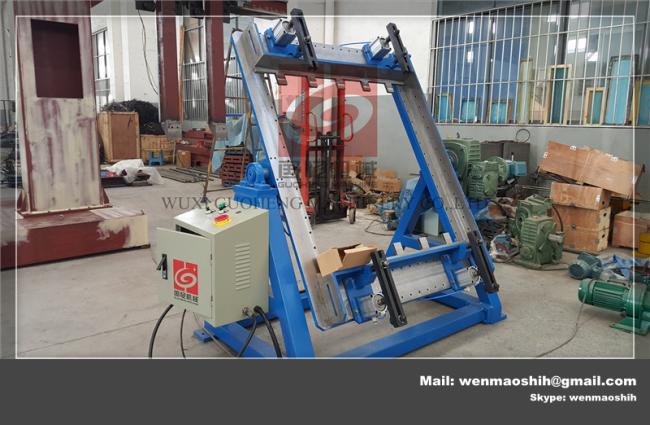

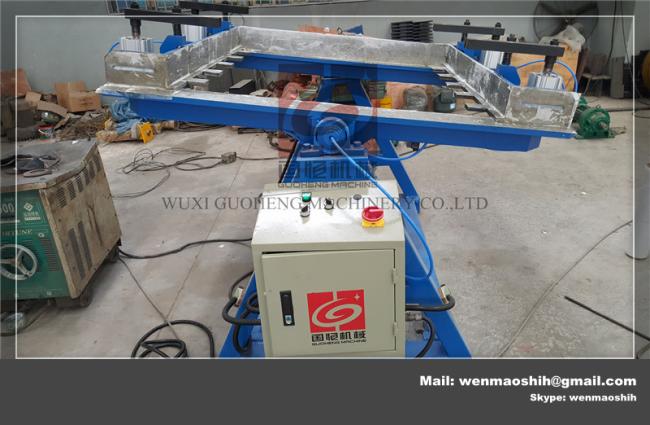

3. Reference Photos
