48 Volt Lithium Ion Battery For Electric Bike 18650 13S8P 20 19.6 Ah
RYDBATT WX-D09/Li-18650-13S8P -48V20(19.6)Ah-PCM 48V For Electric Motor Battery
Product Description:
* Accurate electricity display.
* Enclosure ip-x5 waterproof
* The production environment conforms to international standards.
|

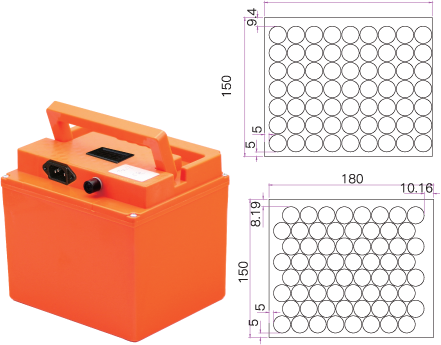

Model WX-D09/Li-18650-13S8P -48V20(19.6)Ah-PCM (with plastic shell) PCM Specification: F48V15/50A-BN 65*54*11 Communication Protocol: NO Abnormal State Display: NO SOC Display: YES Product Specification |
 |
| NO. | Content | Testing method | Remark |
| 1 | Charge cut-off voltage | 54.6V | |
| 2 | Discharge cut-off voltage | 36.4V | |
| 3 | Standard charge | Charge the battery at constant current of 0.2C to reach 54.6V. Then charge the battery at constant 54.6V voltage until the charging current decreasing to 0.02C. | |
| 4 | Standard discharge | After the standard charging, rest for 0.5-1 hour then discharge to 39V@0.2C. | |
| 5 | Maximum continuous discharge current | 15A | |
| 6 | Pulse maximum discharge current | 50A | w7mS |
| 7 | Maximum charge current | 4A | |
| 8 | Rated capacity |
Typical capacity: 20Ah Minimum capacity: 19.6Ah -5% |
standard discharge after standard charge |
| 9 | Operation temperature range | Charging: 0〜45t | 60±25%R.H |
| Discharging: -20~60*C | |||
| 10 | Storage temperature | w1 month:-20 ~ 45P | 60±25%R.H Best 10-251: for long-time storage |
| w3 months: -10 ~ 35C | |||
| w1 year: 0 ~ 30C | |||
| 11 | Impedance | w200mQ | |
| 12 | weight | =2000g |
Product Electric Performance Test
| NO. | Items | Test Conditions | Requirements |
| 1 | Capacity Retention | Fully charging, store them at (20 ± 5)t for 28 days, then discharge to 36.4V @0.2C. | Discharging time^4.25h |
| 2 | Cycle Life @252 |
Discharge to 36V @0.2C, then Charge the battery @0.2C to reach 54.6V. Then charge the battery at constant 54.6V voltage until the charging current decreasing to 0.02C. Rest for 0.5-1 h. discharge to 36.4V@ 0.2C and rest for 0.5-1 h. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity. |
Cycles life ^300 |
| 3 | Storage |
Charge the battery to 40%~65% of its rated capacity using standard charging mode, then keep it in an ± 5*C, humidity 45% ~ 85% room for 12 months, fully charge and discharge it @0.2C until voltage down to 36.4V. (The testing sample should be within 3 months dated from production date) |
Discharge time >210min |
Mechanical Performance
| NO. | content | Testing method | Requirements |
| 1 | Vibration Tes | After standard charging, put battery on the vibration table. 30 min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency 10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. | No influence to batteries' electrical performance and appearance. |
| 2 | Drop Test | Random drop the battery from 1.0m height onto wood board 2 times. | No explosion or fire |
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.

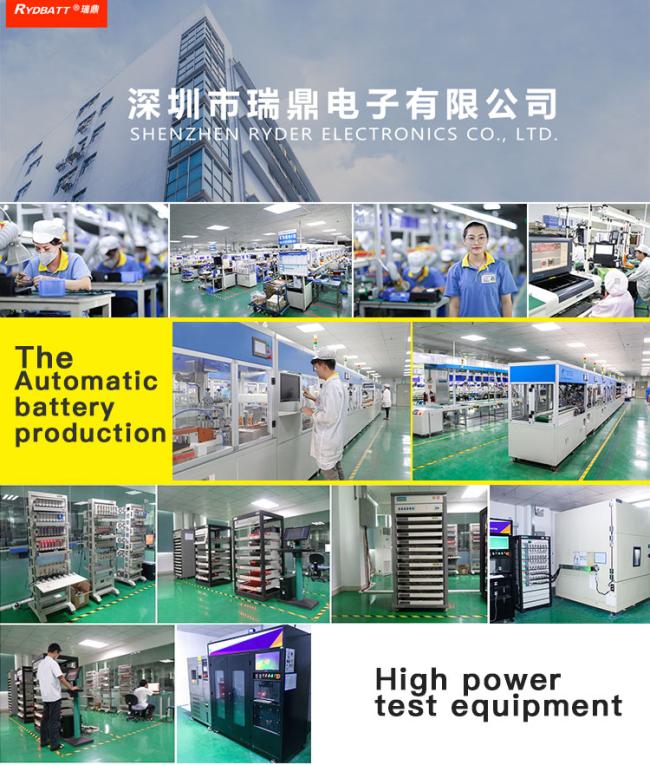

Factory photo:
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as Product, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
