Electric Motor 16S7P 18650 Lithium Battery Pack 57.6V 23.8Ah 500 Times
RYDBATT Li-18650Li-ion Battery-16S7P-57.6V 23.8Ah-PCM For Electric Motor Battery
About company:
* Ryder has 15 years experience of battery packs. Our customers are from all over the world.
* Develop products according to customer requirements or product orientation.
* The automated battery assembly line can process 7K-10K cells every day to guarantee fast delivery for the orders.
* Offer 200 test points for the battery within 60V 10A and 32 test points for the battery within 100V 20A.
* SAP & MES dual system to coordinate daily production.
1 Rated performance:
Battery rated performance
| No | Item | Rated performance | Remark |
|
1 |
Rated capacity |
Nominal 23.8Ah Min 23.45Ah-5% |
Standard discharge after standard charge |
|
2 |
Nominal voltage |
57.6V |
Mean operation voltage during standard discharge after standard charge |
| 3 | Voltage at end of discharge | 44.8V | Discharge cut-off voltage |
| 4 | Charging voltage | 67.2V | |
| 5 | Shipments voltage | 56-58.4V | SOC≤30% |
| 6 | Impedance | ≤580 mΩ | |
|
7 |
Standard charge |
Constant current 0.2 C5A Constant voltage 57.6V Cut-off current ≤0.02C5A |
Under the condition of the ambient temperature of 25±2℃ |
|
8 |
Standard discharge |
Constant current 0.2 C5A End voltage 44.8V | |
|
9 |
Maximum Charge Current |
Constant current 0.5 C5A Constant voltage 57.6V Cut-off current ≤0.02C5A |
|
|
10 |
Fast discharge |
Constant current 0.5 C5A End voltage 44.8V | |
| 11 | Maximum continuous discharge current | ≤ 35A | |
|
12 |
Operation temperature range | Charge:10~45℃ |
60±25%R.H |
| Discharge: -20~60℃ | |||
|
13 |
Cycle life |
>300cycles |
Charging/discharging in the below condition: Charge: standard charge Discharge: 0.2 C5A to 36.4V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC |
|
14 |
Storage temperature |
≤1 month: -20 ~ 45℃ |
60±25%R.H, Best 10~25℃ for long-time storage |
| ≤3 months: -10 ~ 30℃ | |||
| ≤1 year: 0 ~ 30℃ | |||
| 15 | Weight | Approx: ≈7Kg | |
| 16 | Dimension(mm) | Thickness*Width*Height(Max) | mm |
| 17 | output wire length(mm) | Excluding the connector | / |
2 Electrical performances
Battery electrical performances
| No | Items | Test procedure | Requirements |
|
1 |
Nominal voltage |
The average value of the working voltage during the whole discharge process. |
57.6V |
|
2 |
Discharge performance |
The discharge capacity of the battery, measured with 0.2 C5A down to 44.8V within 1 hour after a standard charge at 25±5℃ |
Discharge ≥Minimum capacity |
|
3 |
Capacity retention |
After 28 days storage at 25±5℃, after having been standard charged and discharged at 0.2 C5A to 44.8V (the residual capacity is above 85% of nominal capacity) |
Discharge time≥4.25h |
|
4 |
Cycle life |
Charging/discharging in the below condition: Charge: standard charge at 25±5℃ Discharge: 0.2C5A to 44.8V Rest time between charge/discharge:30min Until the discharge capacity <80% of NC |
>300cycles |
|
5 |
Storage |
(Within 3 months after manufactured) The battery is charged with 0.2C5A to 40-50% capacity and stored at ambient temperature 25±5℃, 65±20%RH for 12 months. After the 12 months storage period the cell is fully charged and discharged to 44.8V with 0.2 C5A |
Discharge time≥4h |
1 PCM performance
Electrical characteristics
| Contents | Min. | Type | Max. | Tolerance | Unit |
| Absolute Maximum Rating | |||||
| Input charging voltage | 67.2 | ±1% | V | ||
| Continuous charging current | 6.5±0.5A | A | |||
| Output discharging voltage | 44.8 | 57.6 | 67.2 | V | |
| Continuous output discharging current | ≤35 | A | |||
| Ambient Condition | |||||
| Operating temperature | -20 | 60 | ℃ | ||
| Humidity (No Water-Drop) | 0% | 90% | RH | ||
| Atmospheric pressure | 86 | 106 | KPa | ||
| Storage Condition | |||||
| Storage temperature | -5 | 30 | ℃ | ||
| Humidity (No Water-Drop) | 40% | 60% | RH | ||
| Atmospheric pressure | 86 | 106 | KPa | ||
| Protection Parameters (for Single Cell). | |||||
| Over-Charge voltage protection | |||||
| Over-Charge voltage alert | Cell voltage ≥ 4220mV & 1000±550mS additional delay | ||||
| Over-Charge voltage protection | 4250 | ±50 | mV | ||
| Over-Charge voltage protection | 4300 | ±50 | mV | ||
| Over-Charge voltage protection release | 4100 | ±50 | mV | ||
| Over-Charge voltage protection 1 delay time | 1500 | ±550 | mS | ||
| Over-Charge voltage protection 2 delay time | 700 | 1000 | 1750 | mS | |
| Over-Charge voltage alert/protection release delay time | 3000 | ±550 | mS | ||
| Over-Discharge voltage protection | |||||
| Over-Discharge voltage alert | Cell voltage ≤ 3200mV & 3000±550mS additional delay | ||||
| Over-Discharge voltage alert release | Cell voltage ≥ 3400mV & 3000±550mS additional delay | ||||
| Over-Discharge voltage protection 1 | 2800 | ±100 | mV | ||
| Over-Discharge voltage protection 2 | 2600 | ±100 | mV | ||
| Over-Discharge voltage protection release | 3200 | ±100 | mV | ||
| Over-Discharge voltage protection release current (Charging state) | Charge current ≥200mA | mA | |||
| Over-Discharge voltage protection 1 delay time | 1500 | ±550 | mS | ||
| Over-Discharge voltage protection 2 delay time | 700 | 1000 | 1750 | mS | |
| Over-Discharge voltage alert/protection release delay time | 3000 | ±550 | mS | ||
| Into Shutdown mode | 2400 | ±100 | mV | ||
| Into Shutdown mode delay time | 30000 | ±550 | mS | ||
| Battery pack Over-Charge voltage protection | |||||
| Battery pack Over-Charge voltage alert | Total voltage ≥ 67.5V & 1000±550mS additional delay | ||||
| Battery pack Over-Charge voltage protection | 68 | ±0.5 | V | ||
| Battery pack Over-Charge voltage protection release | 65.6 | ±0.5 | V | ||
|
Battery pack Over-Charge voltage protection delay time |
1000 | ±550 | mS | ||
|
Battery pack Over-Charge voltage alert/protection release delay time |
3000 | ±550 | mS | ||
| Battery pack Over-Discharge voltage protection | |||||
| Battery pack Over-Discharge voltage alert | Total voltage ≥ 51.2V & 1000±550mS additional delay | ||||
| Battery pack Over- Discharge voltage protection | 44.8 | ±0.5 | V | ||
| Battery pack Over-Discharge voltage protection release | 51.2 | ±0.5 | V | ||
|
Battery pack Over-Discharge voltage protection delay time |
1000 | ±550 | mS | ||
|
Battery pack Over-Charge voltage alert/protection release delay time |
3000 | ±550 | mS | ||
| Charge Over-Current/Discharge Over-Current/Short circuit protection | |||||
| Over-Current charge protection | 6.5 | ±1 | A | ||
| Over-Current charge protection delay time | 3000 | ±550 | mS | ||
| Over-Current charge protection release | 10 Sec additional delay | ||||
|
Over-Current charge protection release current (Discharge state) |
Discharge current ≥200mA | mA | |||
| Over-Current discharge alert | Discharge current ≥ 50A & 3Sec additional delay | ||||
| Over-Current discharge alert release | Discharge current ≤ 45A & 3Sec additional delay | ||||
| Over-Current discharge protection 1 (Only in normal mode) | 55 | ±4 | A | ||
| Over-Current discharge protection 2 (Only in normal mode) | 70 | ±5 | A | ||
| Over-Current discharge protection 3 | 100 | ±15 | A | ||
| Over-Current protection 1 delay time | 50000 | ±1000 | mS | ||
| Over-Current protection 2 delay time | 3000 | ±550 | mS | ||
| Over-Current protection 3 delay time | 160 | ±32 | mS | ||
| Over-Current protection 1/2/3 release | Remove the load and 15Sec additional delay | ||||
| Short circuit discharge protection | 266 | ±40 | A | ||
| Short circuit protection delay time | 200 | ±60 | uS | ||
| Over-Current 3 and Short circuit protection release | Remove the load and 10Sec additional delay | ||||
| Temperature protection | |||||
| Charge over temperature alert | Temperature ≥ 40℃ & 3Sec additional delay | ||||
| Charge low temperature alert | Temperature ≤ 5℃ & 3Sec additional delay | ||||
| Discharging over temperature alert | Temperature ≥ 50℃ & 3Sec additional delay | ||||
| Discharging low temperature alert | Temperature ≤ -10℃ & 3Sec additional delay | ||||
| Mosfet over temperature alert Mosfet | Temperature ≥ 80℃ & 3Sec additional delay | ||||
| Temperature alert release | Hysteresis 5℃ & 3Sec additional delay | ||||
| Charge over temperature protection | 48 | ±5 | ℃ | ||
| Charge over temperature protection release | 43 | ±5 | ℃ | ||
| Charge low temperature protection | 0 | ±5 | ℃ | ||
| Charge low temperature protection release | 5 | ±5 | ℃ | ||
| Discharging over temperature protection | 65 | ±5 | ℃ | ||
| Discharging over temperature protection release | 60 | ±5 | ℃ | ||
| Discharging low temperature protection | -20 | ±5 | ℃ | ||
| Discharging low temperature protection release | -15 | ±5 | ℃ | ||
| Mosfet over temperature protection Mosfet | 85 | ±5 | ℃ | ||
| Mosfet over temperature protection release Mosfet | 60 | ±5 | ℃ | ||
| Pre-Discharge Resistor over temperature protection | 85 | ±5 | ℃ | ||
|
Pre-Discharge Resistor over temperature protection release |
70 | ±5 | ℃ | ||
| Temperature protection delay time | 3000 | ±2500 | mS | ||
| Temperature protection release delay time | 3000 | ±2500 | mS | ||
| Cell balance | |||||
| Balance start voltage | 3800 | ±50 | mV | ||

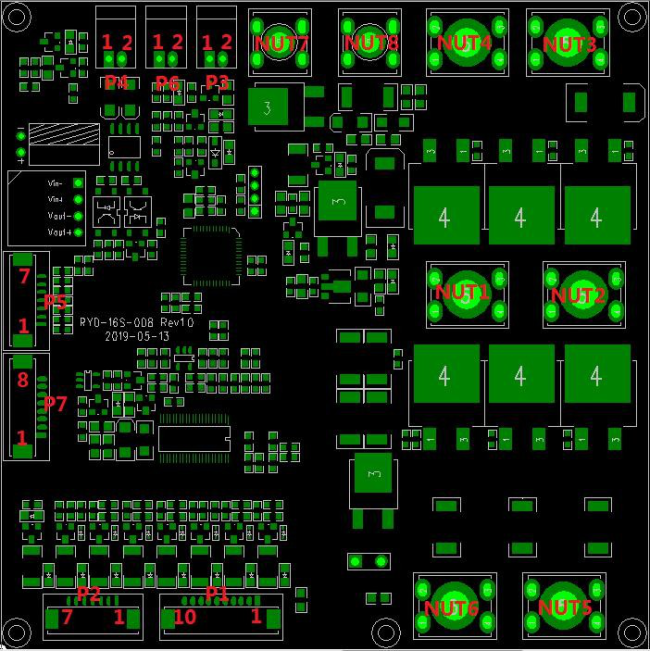

1.2 PCB Layout
3 Battery pack drawings

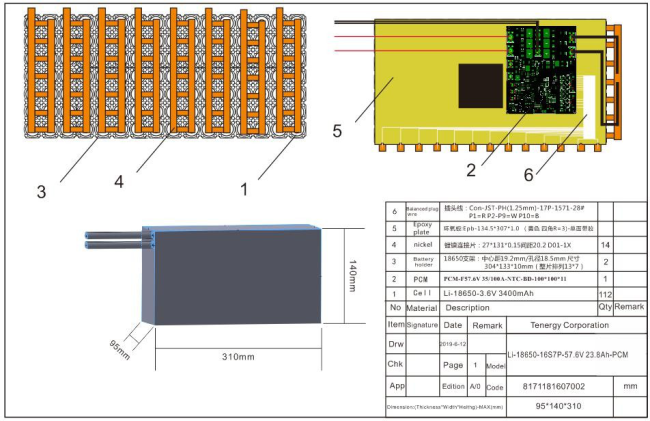

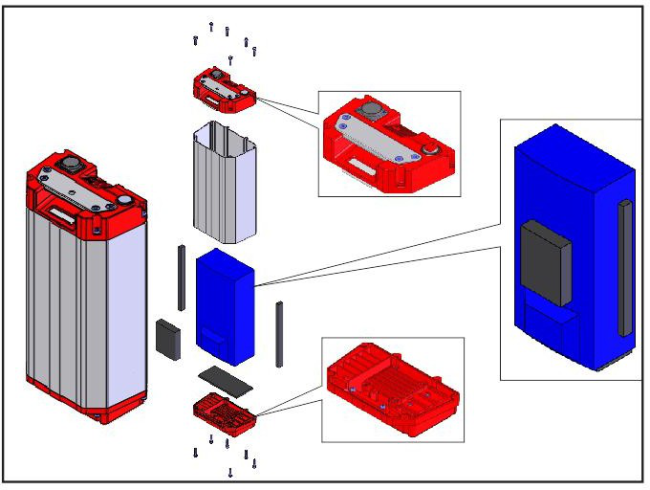

Drawing 1: Battery pack drawings
