Fine Or Coarse Rotary Drum Screen Wastewater Bar For Water Treatment
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
10~20days
Brand:
GNGTHISM
Product Description

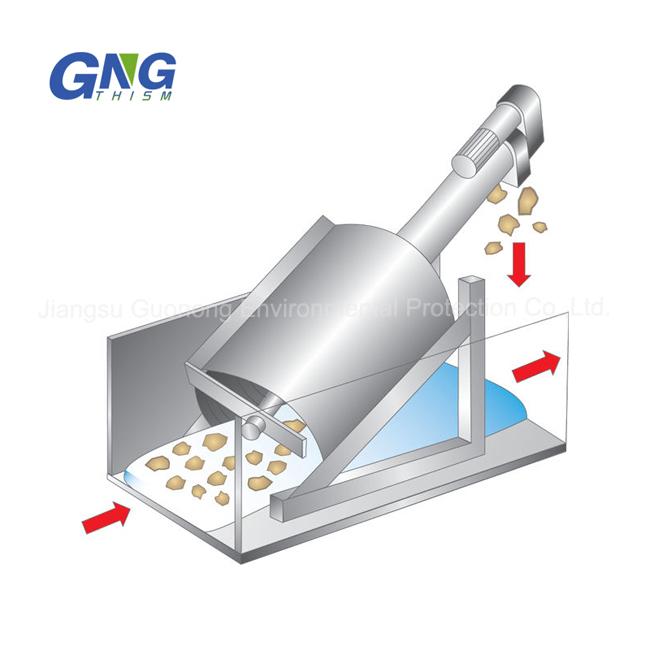

Hot sale rotary drum wastewater bar screen for water treatment
The rotary drum screen is widely used in the inlets containing floating objects, such as river channel, channel, bar screen wells, water pumping stations, hydropower stations, waterworks, power plants, steel mills, etc. Thus, the sediments and dregs can be intercepted and got out of the sewage, the sewage can be purified preliminarily, and ensure the normal operation of the follow-up treatment process.
Technical Parameters
| Model |
GNZG- 600 |
GNZG- 800 |
GNZG- 1000 |
GNZG-1200 | GNZG-1400 | GNZG-1600 | GNZG-1800 |
GNZG- 2000 |
||
| Drum Diameter (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Length I (mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
| Transport Tube d (mm) | 219 | 273 | 273 | 300 | 300 | 360 | 360 | 500 | ||
| Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
| Max Water Depth H4 (mm) | 350 | 450 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
| Installation Angle | 35˚ | |||||||||
| Channel Depth H1 (mm) | 600-3000 | |||||||||
| Discharge Height H2 (mm) | Customized | |||||||||
| H3 (mm) | Confirmed by the type of reducer | |||||||||
| Installation Length A (mm) | A=H×1.43-0.48D | |||||||||
| Total Length L (mm) | L=H×1.743-0.75D | |||||||||
| Flow rate (m/s) | 1.0 | |||||||||
|
Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
| 1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
| 2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
| 3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
| 4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
| 5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 | ||
Advantages
- High quality and reliability at low cost
- Protection of downstream plant and drains
- Easily installed onto an existing or new treatment works
- Improved Health & Safety with optional continuous bagging
- Non-clogging even with fibrous materials
- Reduced disposal costs because of the screenings press
- High solids capture
- Enclosed drum screen
Applications
- Process liquor or fluid screening
- Municipal wastewater treatment works
- Industrial effluent discharges
- MBR Membrane pre-screening
- Commercial outlet discharges
- Storm flows
- Sea outfall discharges
