PAC Feeding 500L / H Automatic Chemical Dosing System
Chemical Dosing&Preparation Machine PAM/Polymer/PAC Feeding System
Flocculant needs to "mature" about 30 to 60 minutes before it can be dosed.Matured polymer is a sticky liquid.For larger installations we recommend automatic polymer dosing systems for both powder and liquid polymer applications.

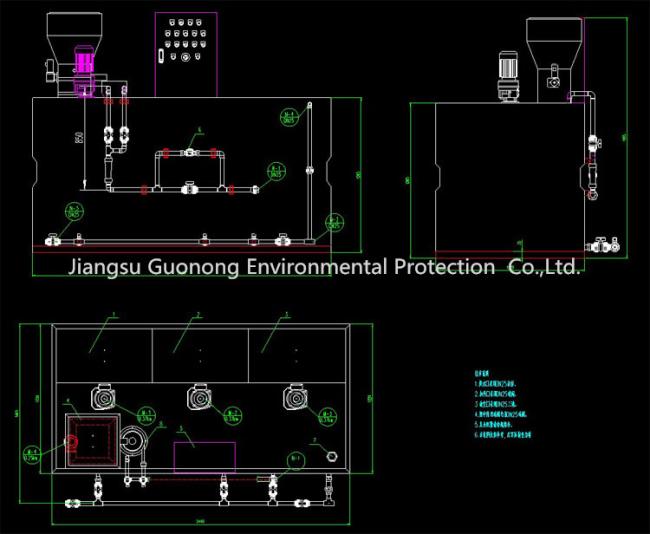

Structure And Working Principles
It applies a jet mixer, using high-speed water power to break up the polymer powder which will improve the fineness, increase the contact of water and polymer powder and reduce the time of dissolution. The equipment adopts the design of three tank overflow combination, that is, mixing, aging and storing. The proportion difference caused by the gravity and solubility will automatically separate the dissolved and undissolved solution. Homogeneous degree of the solution will be improved by stirring of the low-speed agitator afterwards.
Technical Parameter
|
Model Parameter |
GNJY-500 | GNJY-1000 | GNJY-1500 | GNJY-2000 | GNJY-3000 | GNJY-4000 | |
| Solution Preparation Amount Q (L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Dimension (B*L*H) |
900*1500 *1650 |
1000*1625*1750 |
1000*2440* 1800 |
1220*2440* 1800 |
1220*3200* 2000 |
1450*3200* 2000 |
|
| Powder Conveyor Power N (KW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | |
| Agitator |
Paddle Diaφ(mm) |
200 | 200 | 300 | 300 | 400 | 400 |
| Spindle Speed n (r/min) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Power N(KW) | 0.2*2 | 0.2*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.37*2 | |
| Dosing Screw Pump |
Flow (m³/h) |
0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 |
| Lift (m) | 10 | 10 | 10 | 15 | 15 | 15 | |
|
Power N (KW) |
0.75 | 0.75 | 1.1 | 1.1 | 2.2. | 2.2 | |
|
Inlet Pipe Dia DN1 (mm) |
25 | 25 | 32 | 32 | 50 | 50 | |
|
Outlet Pipe Dia DN2(mm) |
25 | 25 | 25 | 25 | 40 | 40 | |
Main Features
♦ Powder/liquid mixer won the new patent product design, the fusion effect is 100%
♦ Unique design of automatic intermittent operation and cross mixing function at stand-by time makes the uniform solution always working in the best condition
♦ When powder feeding hopper reaches the minimum stock, led light warning and automatic stop function makes overall maneuverability more perfect

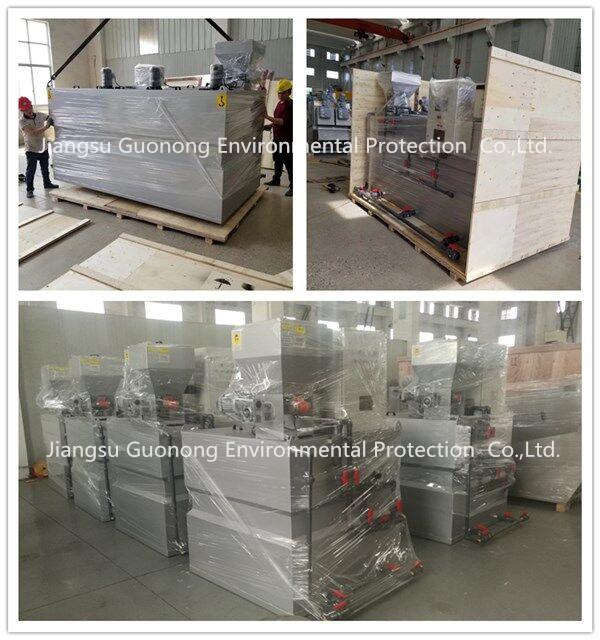

Packing&Delivery
