WWTP Sludge Dewatering Machine For Municipal Wastewater Treatment

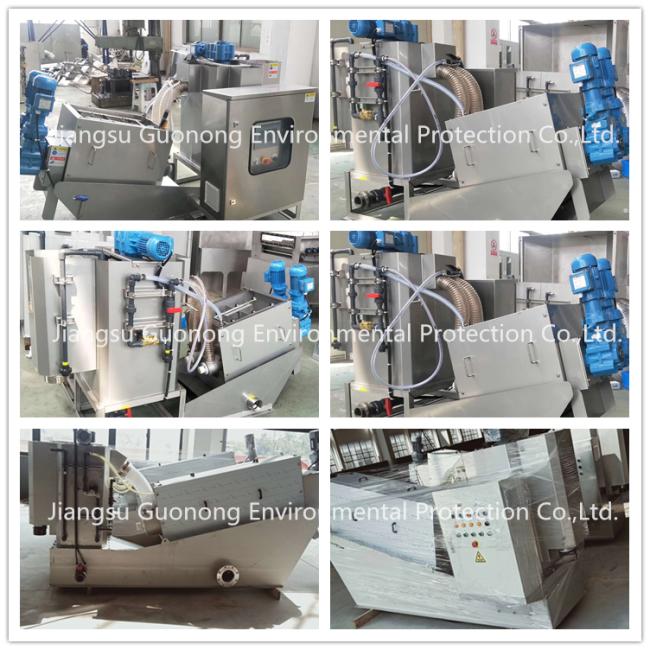

WWTP Sludge Dewatering Machine Screw Sludge Dewatering Machine for Municipal Wastewater Treatment
The wastewater is pushed into the dewatering machine.The sludge will move to the sludge cake outlet under the pressure of the helical aixs blades.Becuse the gap among the helical blades become narrower,so the sludge bear heavier pressure and begain to dewatering under the pressure. The water comes out from the space between fixed and moving plates.
Working Principle
1. The sludge are transported to the flocculation tank through storage tank, and adequately
mixed by the mixer.
2. After big flocs are formed, the sewage is transported to the MDS screw press.
3. Flocs moves from the thickening zone to the dewatering zone.
4. Gaps between moving rings and fixed rings narrows, and the pressure of the end plate
increases dewatering,finally the sludge cake is discharged.
5. The sludge is transported out by shaftless screw conveyor.
Technical Parameters
| Type | Raw wastewater/waste actived sludge chemically precipitated | Dissloved-air sludge | Mixed raw sludge |
||
| Sludge concentration(TS) |
0.2% | 1.0% | 2.0% | 5.0% | 3.0% |
| GNDS-131 | 4kg-DS/h (2.0m³/h) |
6kg-DS/h (0.6m³/h) |
10kg-DS/h (0.5m³/h) |
20kg-DS/h (0.4m³/h) |
26kg-DS/h (0.87m³/h) |
| GNDS-132 | 8kg-DS/h (4.0m³/h) |
12kg-DS/h (1.2m³/h) |
20kg-DS/h (1.0m³/h) |
40kg-DS/h (0.8m³/h) |
52kg-DS/h (1.73m³/h) |
| GNDS-133 | 12kg-DS/h (6.0m³/h) |
18kg-DS/h (1.8m³/h) |
30kg-DS/h (1.5m³/h) |
60kg-DS/h (1.2m³/h) |
72kg-DS/h (2.61m³/h) |
| GNDS-201 | 8kg-DS/h (4.0m³/h) |
12kg-DS/h (1.2m³/h) |
20kg-DS/h (1.0m³/h) |
40kg-DS/h (0.8m³/h) |
52kg-DS/h (1.73m³/h) |
| GNDS-202 | 16kg-DS/h (8.0m³/h) |
24kg-DS/h (2.4m³/h) |
40kg-DS/h (2.0m³/h) |
80kg-DS/h (1.6m³/h) |
104kg-DS/h (3.47m³/h) |
| GNDS-203 | 24kg-DS/h (12.0m³/h) |
36kg-DS/h (3.6m³/h) |
60kg-DS/h (3.0m³/h) |
120kg-DS/h (2.4m³/h) |
156kg-DS/h (5.20m³/h) |
| GNDS-301 | 20kg-DS/h (10.0m³/h) |
30kg-DS/h (3.0m³/h) |
50kg-DS/h (2.5m³/h) |
30kg-DS/h (2.0m³/h) |
30kg-DS/h (4.33m³/h) |
| GNDS-302 | 40kg-DS/h (20.0m³/h) |
60kg-DS/h (6.0m³/h) |
100kg-DS/h (5.0m³/h) |
200kg-DS/h (4.0m³/h) |
260kg-DS/h (8.67m³/h) |
| GNDS-303 | 60kg-DS/h (30.0m³/h) |
90kg-DS/h (9.0m³/h) |
150kg-DS/h (7.5m³/h) |
300kg-DS/h (6.0m³/h) |
390kg-DS/h (13.0m³/h) |
| GNDS-304 | 80kg-DS/h (40.0m³/h) |
120kg-DS/h (12.0m³/h) |
200kg-DS/h (10.0m³/h) |
400kg-DS/h (8.0m³/h) |
520kg-DS/h (17.3m³/h) |
| GNDS-351 | 40kg-DS/h (20.0m³/h) |
60kg-DS/h (6.0m³/h) |
100kg-DS/h (5.0m³/h) |
200kg-DS/h (4.0m³/h) |
260kg-DS/h (8.67m³/h) |
| GNDS-352 | 80kg-DS/h (40.0m³/h) |
120kg-DS/h (12.0m³/h) |
200kg-DS/h (10.0m³/h) |
400kg-DS/h (8.0m³/h) |
520kg-DS/h (17.3m³/h) |
| GNDS-353 | 120kg-DS/h (60.0m³/h) |
180kg-DS/h (18.0m³/h) |
300kg-DS/h (15.0m³/h) |
600kg-DS/h (12.0m³/h) |
780kg-DS/h (26.0m³/h) |
| GNDS-354 | 160kg-DS/h (80.0m³/h) |
240kg-DS/h (24.0m³/h) |
400kg-DS/h (20.0m³/h) |
800kg-DS/h (16.02m³/h) |
1040kg-DS/h (34.68m³/h) |
| GNDS-401 | 70kg-DS/h (35m³/h) |
100kg-DS/h (10m³/h) |
170kg-DS/h (8.5m³/h) |
340kg-DS/h (6.5m³/h) |
442kg-DS/h (16.0m³/h) |
| GNDS-402 | 135kg-DS/h (67.5m³/h) |
200kg-DS/h (20.0m³/h) |
340kg-DS/h (17.0m³/h) |
680kg-DS/h (13.6m³/h) |
884kg-DS/h (29.5m³/h) |
| GNDS-403 | 200kg-DS/h (100m³/h) |
300kg-DS/h (30.0m³/h) |
510kg-DS/h (25.5m³/h) |
1020kg-DS/h (20.4m³/h) |
1326kg-DS/h (44.2m³/h) |
| GNDS-404 | 266kg-DS/h (133m³/h) |
400kg-DS/h (40.0m³/h) |
680kg-DS/h (34.0m³/h) |
1360kg-DS/h (27.2m³/h) |
1768kg-DS/h (58.9m³/h) |
Advantage
1. Without secondary pollution
2. Contactless, Wear Free Structure Design
3. Decrease Capital Investment
4. High Resistance to Oily Sludge
