Industrial Water Treatment PVC Lamella Tube Settler Clarifier

Industrial Water Treatment PVC Tube Settler For Wastewater Treatment Plant

Tube settlers offer an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance.

They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.

Made of lightweight PVC, tube settlers can be easily supported with minimal structures that often incorporate the effluent trough supports.They are available in a variety of module sizes and tube lengths to fit any tank geometry, with custom design and engineering offered by the manufacturer.

Technical Parameter

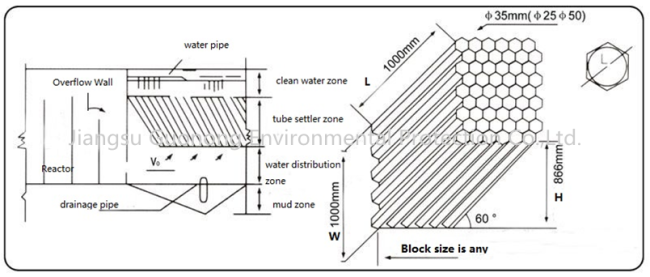

Working Principle

Main Features

1. Ideal in dirty water applications.
2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.
3. Water easily redistributes itself.
4. Ideal in dusty or wooded environments.
5. Easy maintenance.
6. Long service life.
7. High-temperature designs available.
8. Designs available for heavy ice loads.

Advantages

1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope.
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.
4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5. Strong and high quality material
We provides high stability of the modules for easy maintenance – PVC material approved for high standards of potable water applications
Packing&Delivery
