2.7mm Woven Gabion Baskets
Galvanized Double Twisted Woven Gabion Basket 2.7mm
Wire Material: High Galvanized 245g/㎡

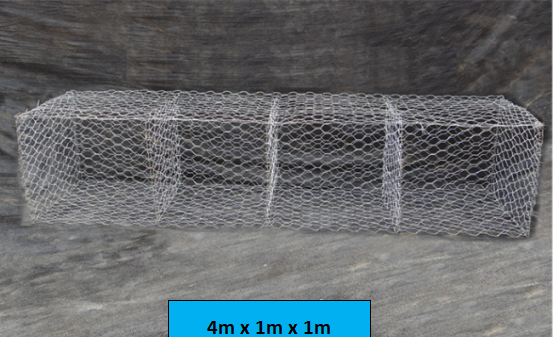

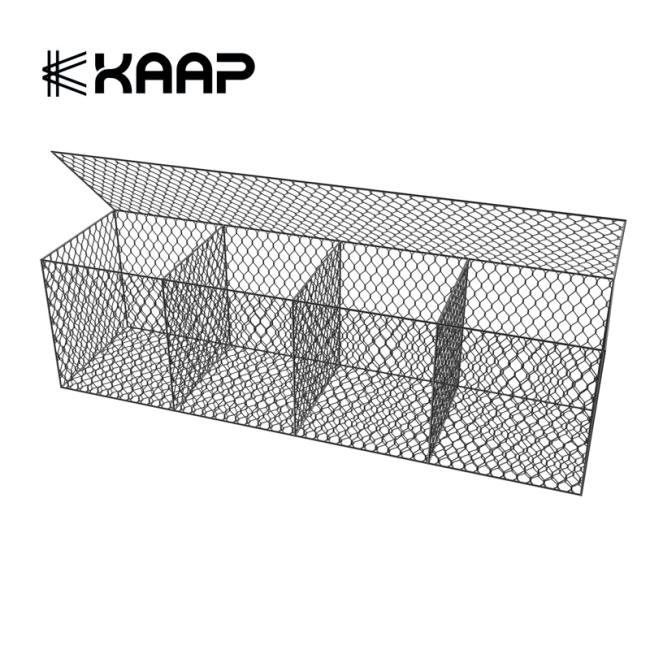

Specifications:4m x1m x1m
Mesh Opening: 8cm x10 cm
Wire Mesh Diameter:2.7mm
Selvedge Wire :3.4mm
Lacing Wire: 2.2mm
Specifications
| Items | Galvanized | PVC Coated |
| Mesh (mm) | 60x80,80x100,100x120 | 60x80,80x100,100x120 |
| Mesh Wire (mm) | 2.2,2.7,3.0,3.2,3.7 | 2.2,2.7,3.0,3.2,3.7 |
| Selvedge Wire(mm) | 3.0,3.4,3.8 | 3.0,3.4,3.8 |
| Lacing Wire(mm) | 2.2 | 2.2 |
| Regular Size of Hexagonal Mesh Gabion Box | ||||
| Length (m) | Width(m) | Height(m) | Cell No. | Volume(m³) |

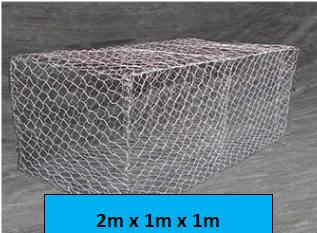

| 2 | 1 | 1 | 2 | 2 |

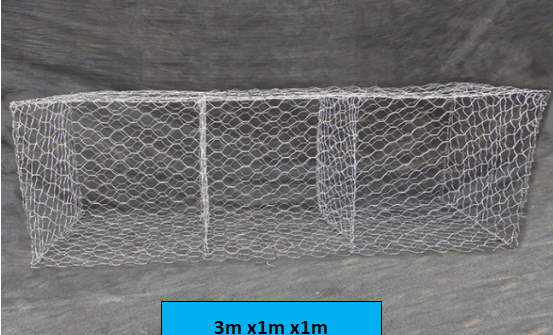

| 3 | 1 | 1 | 3 | 3 |
| 4 | 1 | 1 | 4 | 4 |
| 2 | 1 | 0.5 | 2 | 1 |
| 3 | 1 | 0.5 | 3 | 1.5 |
| 4 | 1 | 0.5 | 4 | 2 |
| 2 | 1 | 0.3 | 2 | 0.6 |
| 3 | 1 | 0.3 | 3 | 0.9 |
| 4 | 1 | 0.3 | 4 | 1.2 |
How to Choose Gabion ?
1.Confirm Material
Materials:Electroplated Wire?Hot Dip Galvanized?High galvanized ,
Galfan Wire?Modified Wire?Steel Wire?Stainless steel wire?
2. Surface treatment: Plastic Coating
Plastic Optional :plastic coated mainly PVC or PE, PVC is resistant to aging and has strong oxygenation.Will be dissolved by strong sulfuric acid,PE is mainly used as an insulating material to resist Strong corrosion sulfur is extremely resistant to low temperature acidity.

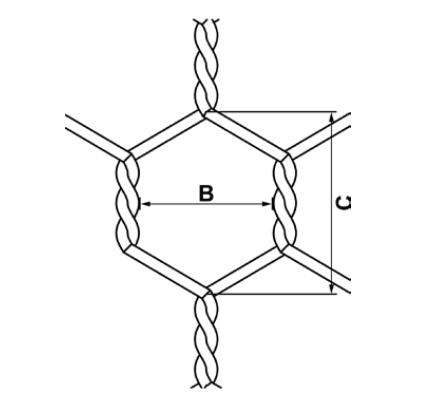

3.Confirm Mesh Opening:
Mesh Option:
common standard mesh Opening:6x8cm,8x10cm,10x12cm,
Non-standard mesh:7x9cm, 9x11cm, 12x15cm,18x22cm
And also can be customized.

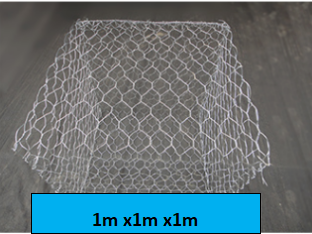

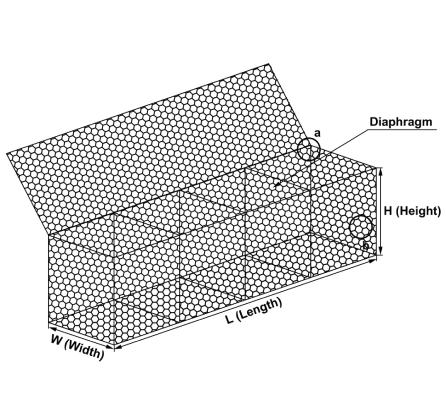

4.Confirm Gabion Size
That is to determine (Length x Width x Height )
Common engineering specification for use as
2x1x1m,2x1x0.5m,3x1x1m,4x1x1m
Special Request can be customized.
5.Confirm the wire diameter:

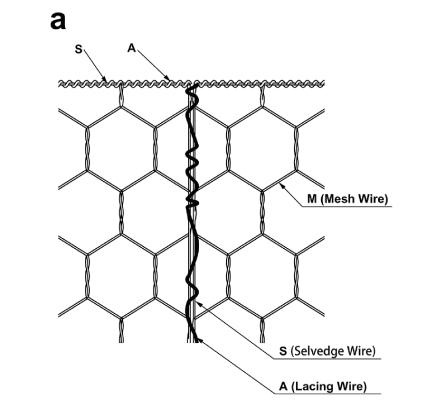

Typical mesh wire,selvedge wire and lacing wire group:
2.7mm,3.4mm,2.2mm
3.0mm,3.8mm,2.2mm
3.05mm,3.9mm,2.2mm

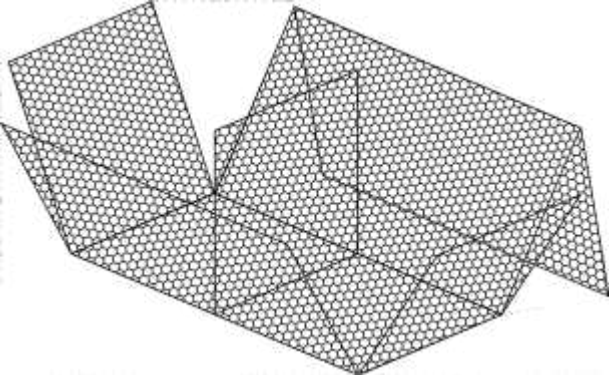

Installation

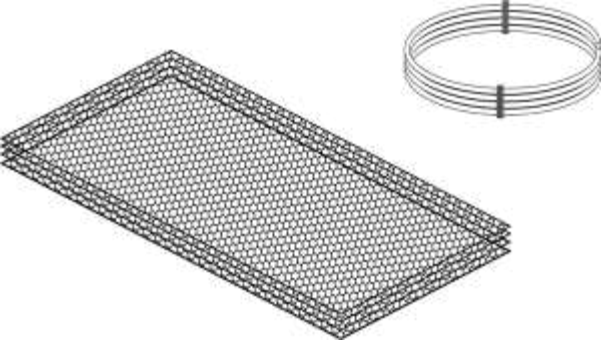

step 1 Step 2

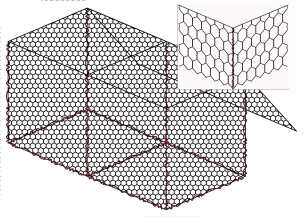

lacing wires
Step 3 Step 4

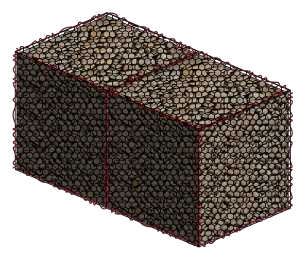

Fasten and secure each panels together with lacing wires. Gabion box is filled with
stones by hand or with a shove.
Step 5 Step6

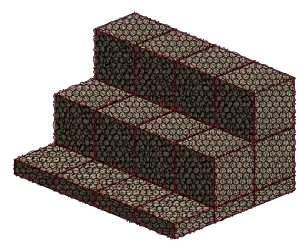

When gabions are filled with stones, Combine gabion mattress and gabion
cover the lids with lacing wire. boxes step by step to build your projects.

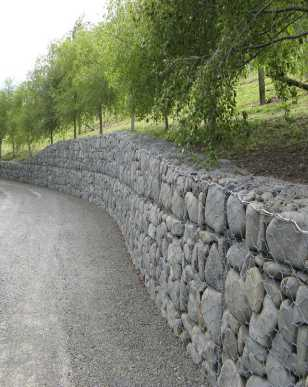

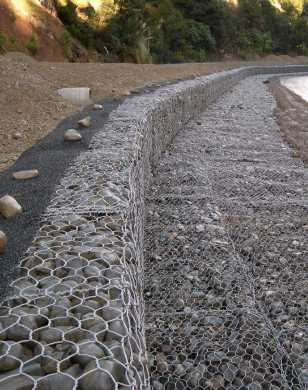

Applications

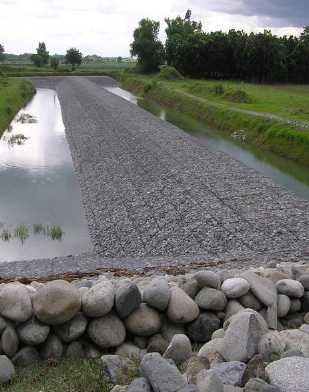

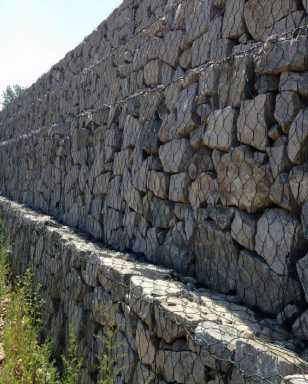

River slope reinforcement,Hillside soil and water conservation,Dam flood diversion,Railway slope reinforcement,Bridge reinforcement,Integrated river management,Overall river reconstruction

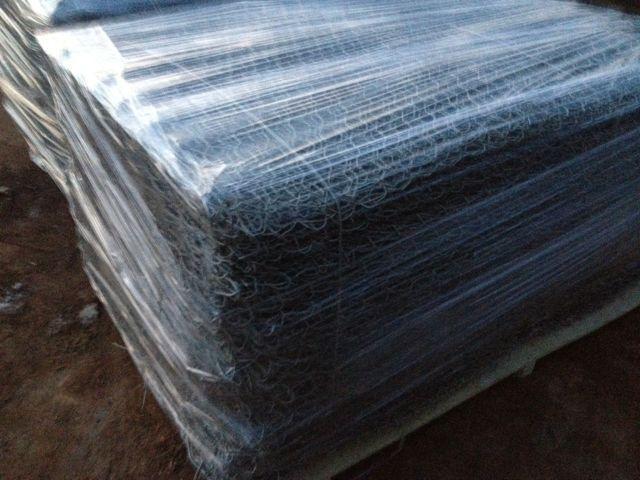

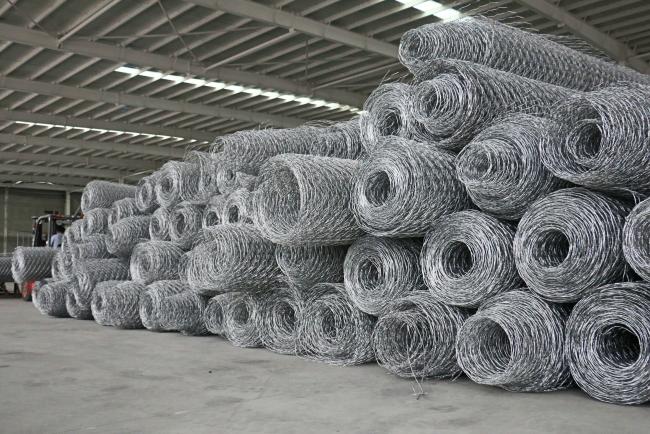

Packing and Delivery

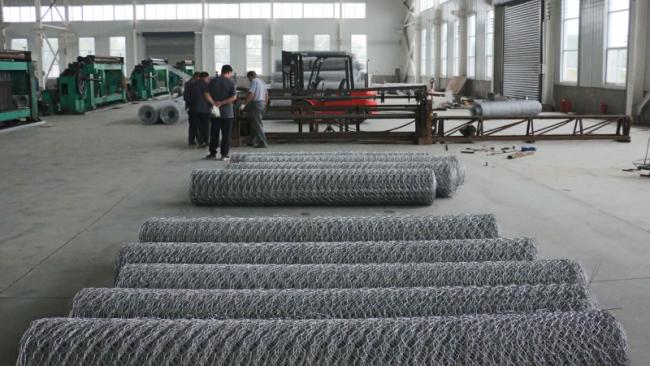

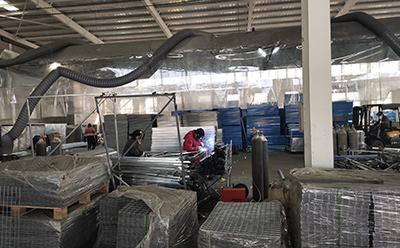

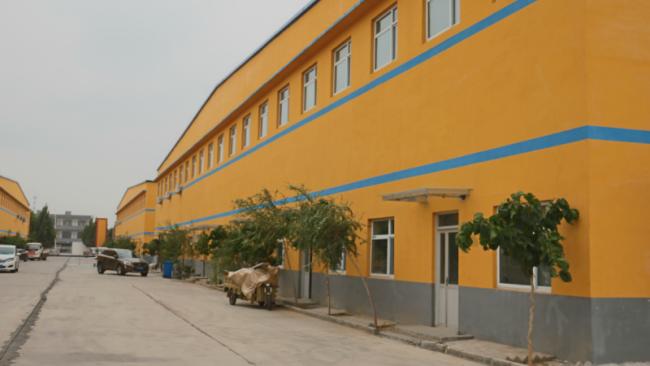

Company Profile
We Try Specializing In Manufacturing And Exporting Of Gabion Since 2006 . It Is Located In Largest Screen Production Base,Anping,The Famous Wire Mesh Town' In China, Since Its Inception.We Have Focused On Gabion , Welded Wire Mesh , Steel Bar Grating ,Fence Etc. We Have Formed A Comprehensive Operation Model Of Integrating Design , Production, Sales, Installation And After-SalesService. In Addition, Razor Barbed Wire , Posts , Chain Link Mesh.Decorative Mesh And Other Metal Products Are Also Our Business Scope Which Is Mainly Used In Military Affairs, Prison,Government, Bank, Ship And Also In Living Wall, Personal House , Villatic Wall, Window, Autobahn , Railway And Border Of The Fence. Hope To Cooperate With Customers Around The World,Mutual Benefit, Create A Better Future.
FAQ
Q: Are you a manufacture or trading company?
