Plastic HDPE dimple drainage board sheet is the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.

This is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water etc.

Width	1-3m
Length	4-30m
Material	HDPE
Board thickness	0.7-1.2mm
Tensile strength(N/100mm)	350
Anti-pression strength(kpa)	300
Elongation rate (% ＞)	80
Flow (cm3.s) ≥	10
CBR puncture strength N	350
Color	Black ,Green, White

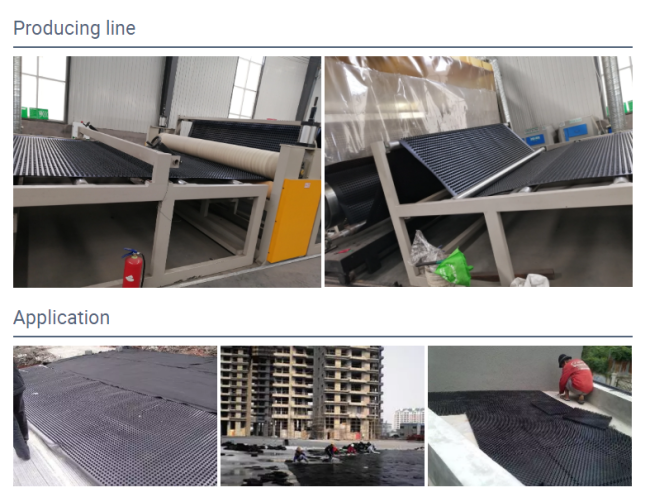

1. Greening project: garage roof greening, roof greening, vertical greening, sloped roof greening, football field, golf course.

2.Municipal engineering: airports, road subgrades, subways, tunnels, landfills.

3.Construction engineering: the upper or lower layer of the building foundation, the interior and exterior walls and bottom of the basement, as well as the roof, roof impervious and thermal insulation, etc.

4.Water conservancy projects: anti-seepage water of reservoirs, reservoirs and artificial lakes.

5.Traffic engineering: highway. Railway subgrade, dam and slope protection layer.

Company Profile

Our factory established in 2006 year, and we have 14 years' experience in research and development, we mainly do welded gabion, weaving gabion box, welded mesh panel, steel bar grating, razor barbed wire, bird spike,chain link mesh, hexagonal wire mesh, ground staple, T/Y post, vineyard post, and other metal products, etc....and we enjoys high reputation at home and abroad, and we have professional team, we have excellent workmanship and price favorable to cooperate.

Exhibition



FAQ

Q: Are you a manufacture or trading company?

A: We are factory, we have been in producing this product since 2006.



Q: Why choose us?

A: We have professional production line and team, Our goal is to deliver excellence from start to finish of every project.



Q: Can you offer free sample?

A: Yes, as first cooperation usually the customer pay freight, and we will return back this found if you make an order.



Q: Can we have your products with our own logo on package?

A: Yes, just send us your logo or printing design and the setup cost would be quoted per artwork.
