Protective Gabion Baskets Galvanised 0.3m Width Defensive Barrier

Price Negotiable

Price: USD12.6-46.9/set FOB Tianjin

MOQ: 50 sets

Delivery Time: 7-10 days after confirmed order

Brand: KAAPGN

Product Description

Protective hesco defensive barriers/Barrier hesco baskets

Wire diameter: 3mm, 4mm, 5mm

Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm

Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement

Geotextile: in heavy duty non-woven polypropylene

Finish: hot dipped galvanized, galfan coated after welded

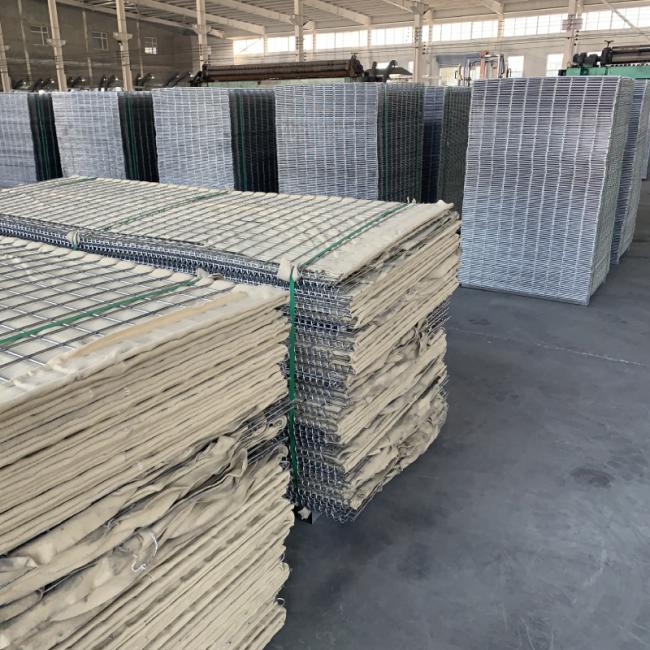

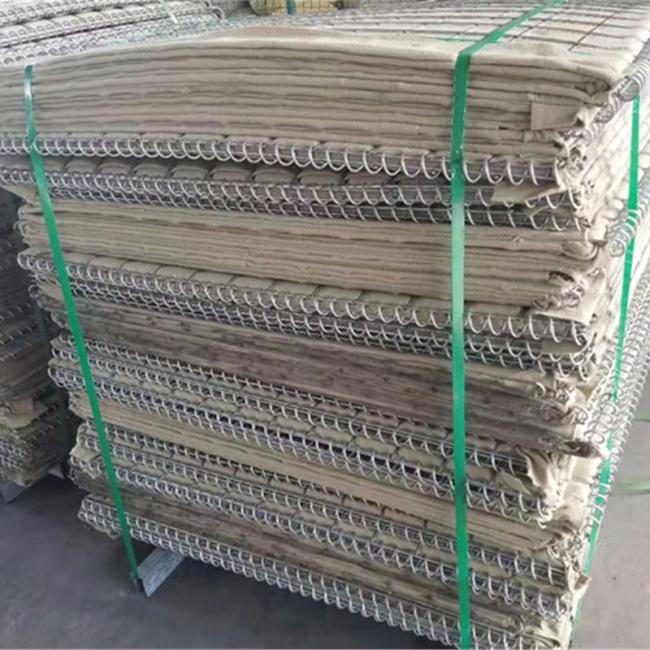

Packing: wrapped with shrink film or packed in pallet.

Product feature:

1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for

additional height.

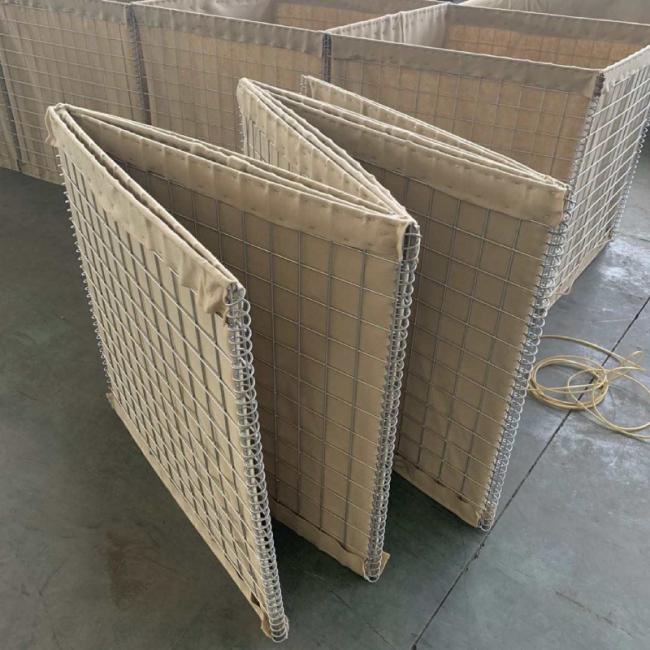

2. The spiral hinged corners allows flat packing for ease of transportation

3. The welded mesh frame is of highly durable construction

4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that

gives the system its strength.

5. The non-woven geotextile liner allowing a wide range of fill material

Application:

Building facades, building and road edging outsourcing, courtyard fence and landscape modeling and so on.

Available shapes: round gabion and spiral gabion: decorative gabion for landscape and garden.

cube, rectangular (often do outsource the building's exterior and commercial buildings, but also can be used for landscape modeling )

Type	Length	Width	Height	No. of Cells / Unit	Wire dia.	Mesh Opening	Packing
							20'	40'
KAAPGN-1	(10m)	3'6"(1.06m)	4'6"(1.37m)	5+4 Cells	5mm	76.2x76.2mm	56 Units	112 Units


KAAPGN-2	4'(1.22m)	2'(0.61m)	2'(0.61m)	2 Cells	5mm	76.2x76.2mm	720 Units	1440 Units


KAAPGN-3	32'9"(10m)	3'3"(1m)	3'3"(1m)	5+5 Cells	5mm	76.2x76.2mm	80 Units	160 Units

KAAPGN-4	32'9"(10m)	5'(1.52m)	3'3"(1m)	5+5 Cells	5mm	76.2x76.2mm	32 Units	64 Units

KAAPGN-5	10'(3.05m)	2'(0.61m)	2'(0.61m)	5 Cells	5mm	76.2x76.2mm	300 Units	600 Units

KAAPGN-6	10'(3.05m)	2'(0.61m)	5'6"(1.68m)	5 Cells	5mm	76.2x76.2mm	108 Units	216 Units

KAAPGN-7	91'(27.74m)	7'(2.13m)	7'3"(2.21m)	5+4+4 Cells	5mm	76.2x76.2mm	6 Units	15 Units


KAAPGN-8	32'9"(10m)	4'(1.22m)	4'6"(1.37m)	5+4 Cells	5mm	76.2x76.2mm	32 Units	72 Units

KAAPGN-9	30'(9.14m)	2'6"(0.76m)	3'3"(1m)	6+6 Cells	5mm	76.2x76.2mm	70 Units	140 Units

KAAPGN-10	100'(30.5m)	5'(1.52m)	7'3"(2.21m)	5+5+5+5 Cells	5mm	76.2x76.2mm	6 Units	14 Units


KAAPGN-11	4'(1.22m)	12'(0.3m)	4'(1.22m)	2 Cells	5mm	76.2x76.2mm	480 Units	960 Units

KAAPGN-12	108'(33m)	3'6"(1.06m)	7'(2.13m)	5+5+5+6+6+6 Cells	5mm	76.2x76.2mm	6 Units	15 Units
