Galvanised Bto-18 Prison Safe Barbed Wire Razor Wire
Galvanized BTO-22 prison safe concertina razor barbed wire
1, Material: Q195 or S.S 304, S.S 316, S.S430 etc...
2, Surface treatment: galvanized or powder coated
3,Razor length: BTO-10 BTO-18 BTO-22 BTO-30 CBT-60 CBT-65 etc...
4, Coil diameter: from 450mm to 950mmfr
5, Clips No. with 3 or 5 clips
6, Length: from 6 m to 16 m
7, Package: water proof paper inside and woven bag outside
8, MOQ: 10 rolls
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-12 |
|
0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-18 |
|
0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 |
|
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| CBT-65 |
|
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |

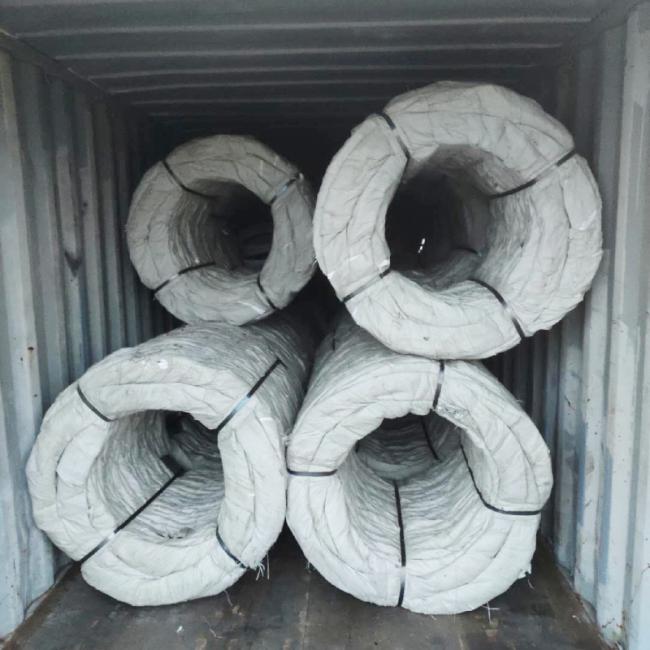

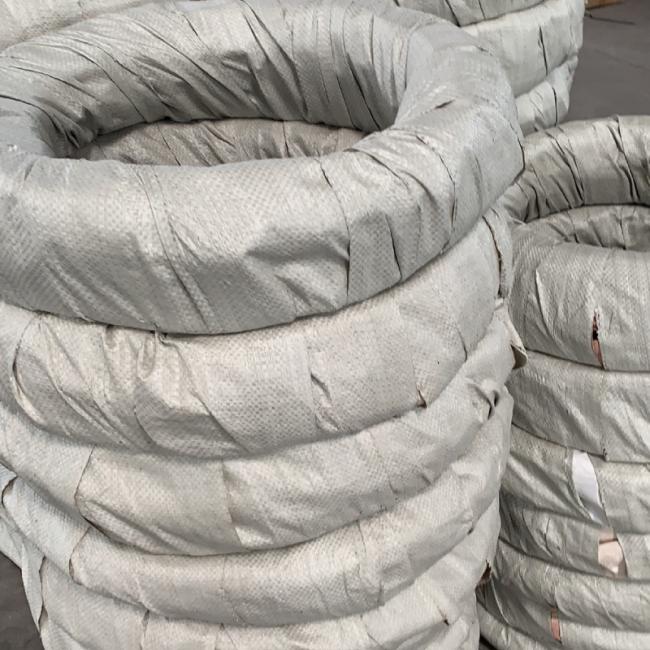

Package:
- Waterproof Paper +Woven Bags or carton
- Usually one 20 feet container can load 25 tons razor wire tape.
Application:
Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.
Also used for division of railway, highway, agricultural fencing, etc.
