ZP17E 17 Stations Double Layers Medicine Rotary Tablet Press Machine
Double layers medicine automatic stainless steel CE SGS ZP17E Rotary tablet press machine with factory price for sale

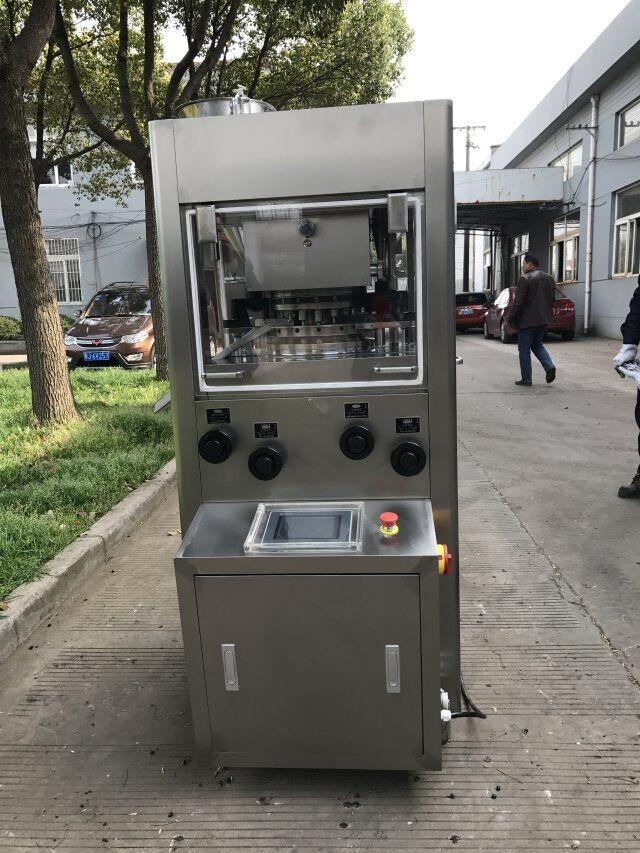

ZP17E Rotary tablet press machine
Features:
The machine is single-pressing and continuous automatic tablet press for pressing granular raw materials into various round and special shaped tablets.It is mainly used in electronic,food,daily commodities,pharmaceutical,chemical and other industries. Machine fully-enclosed by stainless steel. The turretsurface is specially processed.It could prevent cross pollution.And machine according to GMP requirements. This machine equipped with transparent window which could help to observe the statusof pressing. Transparent window could be fully opened,machine easy to clean and maintain.
This machine with such features as high pressure,wide tablet range and being able to press various round,special shaped and ring shaped tablets. Especially suitable for variety ,small batch production.With mechanical-electrical integration.all controllers and regulating devices are centralized at on side of the machine,easy to maintain.
The main technical parameters:
| Die number (station) | 17 |
| Maximum tablet pressure (kn) | 60 |
| Maximum tablet diameter (mm) | 20 |
| The maximum filling depth (mm): | 17 |
| Maximum thickness (mm) | 7 |
| Production (pcs/h) | 34680 |
| Turntable speed (r/min) | 34 |
| Middle mold outside diameter (mm) | 32 |
| Mould height (mm) | 22 |
| Upper and lower punch diameter (mm) | 26 |
| Punch length (mm) | 115 |
| Motor power r (kW) | 3/960,380V/50 |
| Overall size (mm) | 615x890x1415 |
| Host weight (kg): | 700 |
