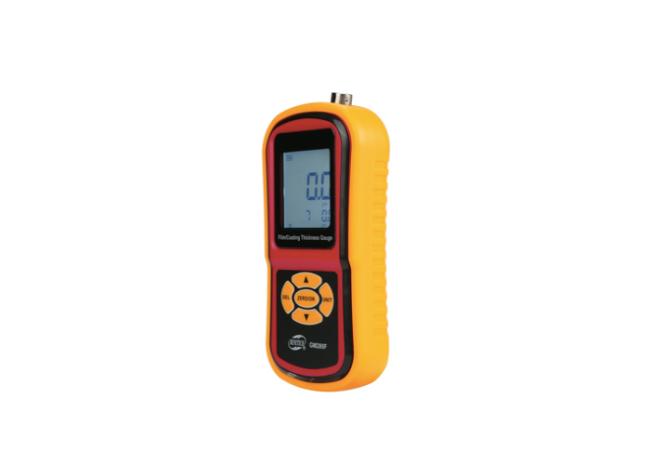

Film Coating Thickness Gauge GM280F

Applying magnetic thickness measuring method, this unit can quickly and precisely measure the thickness of non-magnetic coating such as painting or electrodeposition on the iron magnetic substrate, and finds its wide application in the fields of manufacturing,metal processing,chemical industry and commercial inspection.

Features of Film Coating Thickness Gauge:

• 1.Providing visual readings and status of measurement
  on LCD
  2.Applying high sensitivity sensor for precise measurement
  3.With zero-point, two-points, and basic calibration methods
  to amend the system error quickly;
  4.With single, continuous and compensation measuring
  methods;
  5.Capable of saving, reviewing and deleting the data
  6.Able to delete the unreliable data in a measuring process
  as well as the data all saved in unit
  7.To save the maximum value, minimum value, average
  value, standard compensation value and measuring times
  8.Buzzer alert
  9.Unit switch between the metric and Britain system;
  10.Low battery indication
  11.Automatically turning off
  12.LCD backlight
•

• Specifications of Film Coating Thickness Gauge:

• Technical parameter	Technical index
  LCD display	3 1 / 2 display
  Power supply	3*1.5V AAA alkaline battery
  Operation current	Around 25mA
  Battery life	Continuously 20 hour
  Auto off	1 min.
  LCD backlight function	7 second
  Operation temperature	0 to 40℃
  Operation humidity	10 to 95%RH
  Low battery indication	2.8V±0.2V
  Product size	72x35x145mm
  Weight	246.1g (without battery)

• FAQ



  1. What is our company MOQ?

  As for now it is flexible, but it affects prices.



  2. What's the best payment term?

  Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.



  3.What's our company sample policy?

  We will send you some samples with pleasure,but you need to pay for it.



  4. What is our shipment and delivery term?

  Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

  Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
