Brightsail Medicinal Powder Mixer—a mixer specially designed for mixing medicinal powders
Brightsail Medicinal Powder Mixer, a mixer specially designed for mixing medicinal powders
Product introduction:

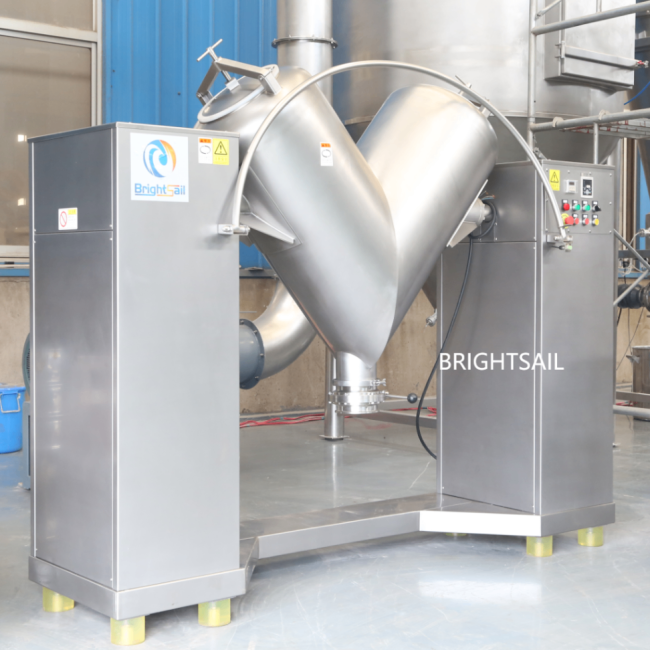

BSV V shape mixer is an efficient mixing equipment specifically designed for powders. During its rotation, it achieves rapid and uniform mixing through the continuous separation and convection movement of the materials. This equipment not only eliminates mixing dead zones but also significantly simplifies the cleaning and maintenance process. It demonstrates excellent applicability in various mixing procedures in fields such as pharmaceutical preparations, food additives, and chemical raw materials, and has become an indispensable key equipment in modern industrial production.
Main features:
This machine is suitable for the mixing of powdery or granular materials in industries such as chemical engineering, food, medicine, and feed. The equipment has a reasonable and simple structure, is operationally sealed, and is convenient for feeding and discharging. The cylinder is made of stainless steel, which is easy to clean. It is suitable for mixing powdery and granular materials with good fluidity and small differences in physical properties, as well as materials with low mixing degree and short mixing time. Due to the stable material flow within the V-shaped mixing container and the fact that it does not damage the original materials, the V-shaped mixer is also suitable for mixing fragile and wear-prone granular materials, or fine powder, block-like materials, and materials with a certain moisture content.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-3000 | BSV-4000 |
| Total volume(L) | 100 | 200 | 300 | 500 | 1000 |
1500 |
2000 | 2500 | 3000 | 4000 |
| Work volume(L) | 60 | 120 | 180 | 300 | 600 | 900 | 1200 | 1500 | 1800 | 2400 |
| Mix time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Motor(KW) | 1.1 | 1.1 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Overall size(L×W×H)(mm) |
1840× 600×1430 |
2110× 600×1675 |
2280× 630×1780 |
2655× 1040×2250 |
3070× 1240×2490 |
3840x 1600x2980 |
3900x 1440x3100 |
4000x1 500x3225 |
4370x 2000x3560 |
4800x 2000x4000 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 |
2800 |
Company information:
Our company has been in the field of machine(mixer, grinder, packing machine) production for many years. To follow the changing need of different factory, we keep on the product development by using new material and technology. In the past few years, we have successfully sold machines to over 40 countries.
Best service:
Machine certificate:
Our v mixer machine has been certified by the European and International standarization organization. You can feel free to use the machine.
