Crystal White Brown Icing 800 Kg / H Sugar Grinding Mill
Crystal sugar powder milling machine white brown icing sugar grinding mill

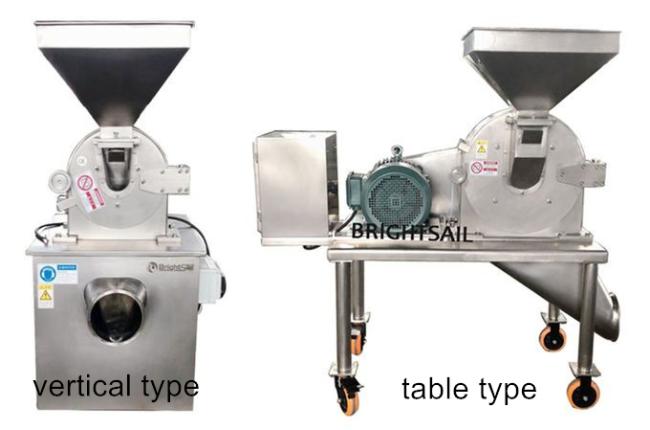

BSU universal crusher is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc. It can be customized with stainless steel 304, 316 and other steel materials. And its knife of crusher part can be selected according to different materials and fineness. If you need no dust when grinding, it also can be equipped with a simple dust collecting box.
Principle:
The machine uses the high speed rotating cutters and the fixed cutters to crush and shear raw materials, which is accompanied by strong airflow inside of the mill chamber to bring out the finished products through the screen. The size of granules can be achieved by changing of the screen. Its fineness can be adjusted from 10-120 mesh.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 |
900 |
Main features:
1. Simple and convenient operation.
2. Clean and maintenance are very easy.
3. No needs big space.
4. Power consumption is small.
Applications:
