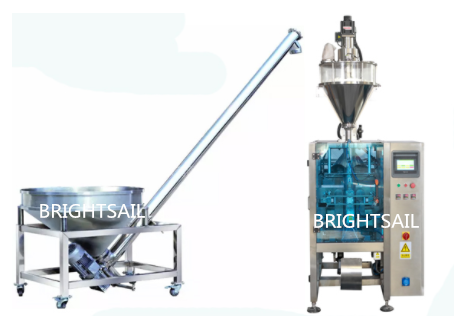

Touch Screen 220V Auger Powder Filling Machine 10g 5kg Packing Weight
packing weight 10g to 5000g auger powder filling machine
BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.auger powder filling machinespice powder packing
|
Optional device for your choice:
1. Date Coder 2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device 4. Air-filling Device 5. Air Exhaust Device 6. Tear Notch Device 7. Nitrogen inflation device 8. Gusset Bag |
 |
auger powder filling machinespice powder packing machineautomatic powder filling machine
Main features:
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.
auger powder filling machinespice powder packing machineautomatic powder filling machine

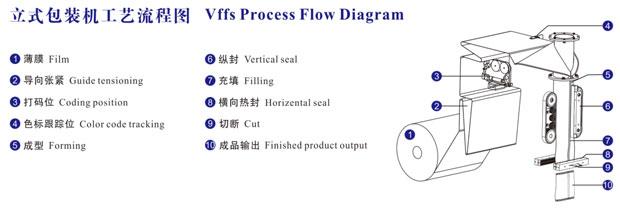

Process flow diagram:
Technical data:auger powder filling machinespice powder packing machineautomatic powder filling machine
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
auger powder filling machinespice powder packing machineautomatic powder filling machine
