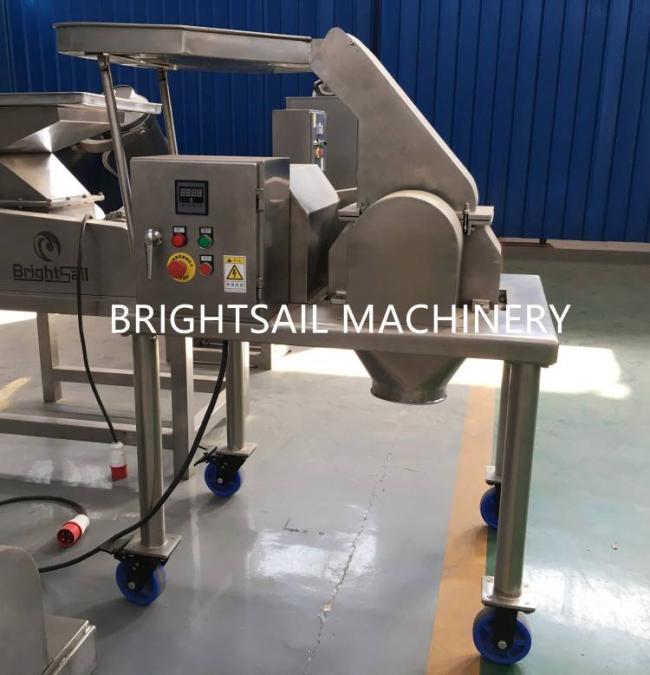

10 To 500kg/H Capacity Tea Leaf Grinding Machine 12 To 120 Mesh Powder Making
10 To 500kg Per Hr Capacity 12 To 120 Mesh Powder Making Tea Leaf Grinding Machine
BSF moringa leaf grinder of our company is designed according to the principle of mixed powder spraying, which is widely used in pharmaceutical, food, chemical and other industries. Suitable for grinding herbs, leaves, tea, vegetable leaves, sorghum leaves
Working Method:tea leaf grinding machine
This crusher is a high-speed equipment. The material is crushed by the high-speed sharp blade on one side and the impact blade on the other side. Blades of different sizes and shapes can be selected according to different materials. The particle size can be obtained by changing the screen surface or adjusting the rotating speed.
Main Features:tea leaf grinding machine
1. Simple structure, convenient installation, disassembly and cleaning of crushing chamber.
2. Stable operation, low noise and low vibration.
3. The operation is simple, and the particle size can be controlled by changing the screen.
4. Pneumatic components, electrical components and operating components all adopt world advanced brands.
Technical Data:tea leaf grinding machine
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
Drawing:tea leaf grinding machine
Crushing Effect:tea leaf grinding machine
