Food 12-120 Mesh Powder Fineness Herbal Powder Machine For Baobab Mill
Food Machinery And Equipment 12-120mesh Powder Fineness Baobab Mill
BSF series baobab powder making mahcine is designed according to the principle of mixed powder spraying. It is widely used in pharmaceutical, food, chemical and other industries. Suitable for grinding herbs, tea, vegetable leaves, sorghum leaves...
Working Method:baobab mill
This crusher is a high-speed equipment. The material is crushed by a high-speed sharp blade on one side and an impact blade on the other side. Different sizes and shapes of blades can be selected according to different materials. The particle size can be obtained by changing the screen surface or adjusting the rotation speed.
Main Features:baobab mill
1. Simple structure, convenient installation, disassembly and cleaning of crushing chamber.
2. Stable operation, low noise and low vibration.
3. The operation is simple, and the particle size can be controlled by changing the screen.
4. Pneumatic components, electrical components and operating components all adopt world advanced brands.
Technical Data:baobab mill
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
Drawing:baobab mill

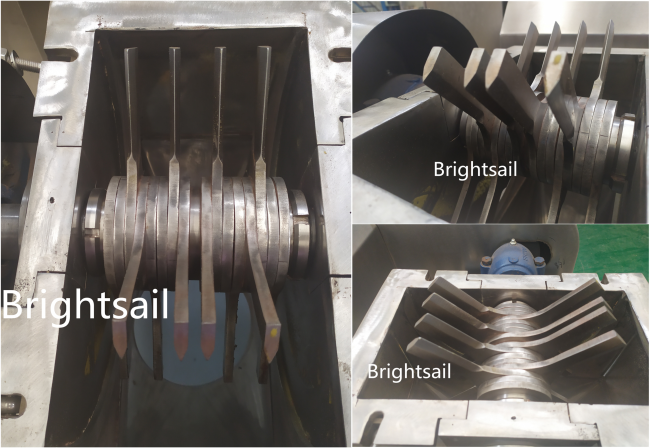

Detailed images:baobab mill
Company:
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.
