3 To 300 Kg Per Hr Capacity Powder Grinder Machine Making Dendrobe Flour Mill For Industry
Service For Industry 3 To 300kg Per Hr Capacity Making Dendrobe Flour Mill
Bs high-speed Hammer crusher is widely used in pharmaceutical, chemical, food and other industries. Compact structure, stable quality, high efficiency. Grinding Room is equipped with screen Mesh, users can choose screen mesh size according to the needs of product output fineness.
Technical data:dendrobe flour mill
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Working method:dendrobe flour mill

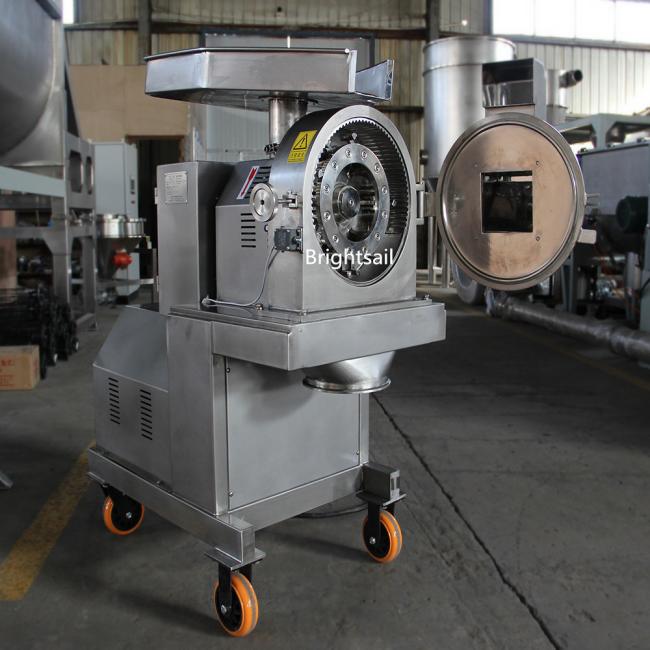

The Dendrobium griidning machine is composed of a frame, a crushing chamber and a feeding part. A movable cutter head is installed on the main shaft, a fixed ring gear is installed in the grinding room, and a screen is installed under the ring gear. When the spindle runs at high speed, the movable cutter head runs, and the materials are crushed under the joint action of impact, friction, shear, impact and collision of the fixed gear ring and the movable hammer. The crushed materials can be discharged directly from the grinding chamber of the host machine, and the particle size can be obtained by changing the mesh of different pore sizes. The machine has the advantages of simple structure, durability, stable operation, obvious crushing effect and convenient maintenance.
Main features:dendrobe flour mill
1. Simple structure, small occupied space
2. Easy to clean and operate.
3. The machine is fitted with pulleys at the bottom for easy movement.
4. Change the size of the powder by changing the screen size.
Crushing Effect:dendrobe flour mill
