Chemical Industry Dry Powder Mixing Machine 5 To 1000l Volume 3d
Chemical Industry 5 To 1000L Volume 3D Dry Powder Mixing Machine

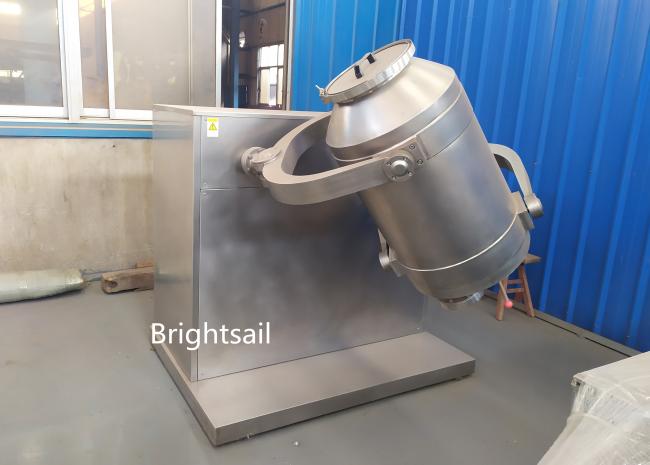

BSTD series 3D powder mixer is suitable for the mixing of dry powder materials in the pharmaceutical, chemical, food, metal powder and other industries. This machine quickly mixes raw materials of different crystal sizes and densities into a uniform product in a closed environment that does not touch the working environment or other materials.
It utilizes a unique three-dimensional pendulum and rotating trajectory to effectively mix various components through continuous advancement.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
Working method:
The mixing vessel is suspended at the transmission end, and the driven shaft crosses and is perpendicular to each other in space through two joints. When the driving shaft rotates, the joint makes the container perform compound movement, including Horizontal Movement, rotation and rotation in space. In this way, the material can also move in three dimensions within the container. A variety of substances in the container flow, diffusion, infiltration, and ultimately form a unified state.
Main features:
1. This powder mixing machine is suitable for highly uniform mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining metallurgy, national defense scientific research and other industries.
2. The mixing pipe moves in multiple directions. The material is separated from centrifugal force without gravity segregation and accumulation.
Each component can adopt interval weight ratio, and the mixing ratio can reach more than 99.9%. So it will be a more ideal mixer.
3. It has the characteristics of high efficiency and short mixing time.
4. All parts in the pipe are circular arc and precision polished.
If you want to send inquriy to me about our machine,could you please tell me?
1.What material do you need to mix?Do you know the density of it?
2.What capacity you expect?
3.What voltage you want?For example ,380V 50hz 3p......
4.What material of the equipment you want?usually wo adoopt stainless steel 304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316 parts SS304
5.Do you need a jicket around the mixer for cooling or heating?
Please contact us if you have interests in our products.
