Foodstuff Industry 200kg/H Powder Grinder Machine Ultrafine Turmeric Pulverizer Mill
Foodstuff Industry Ultrafine Powder Mill Spice Pulverizer Mill

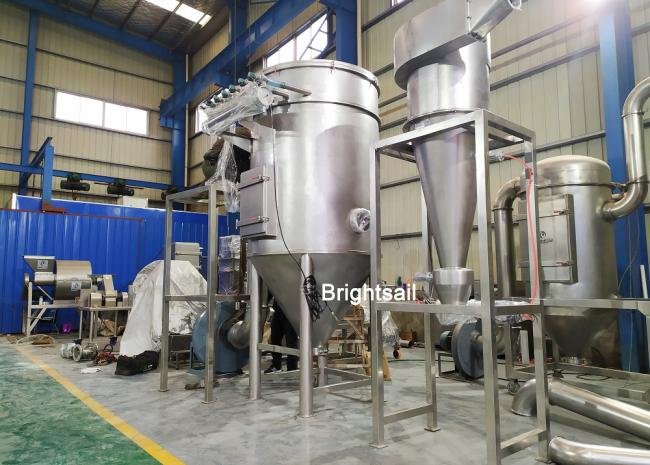

Our BSP series spice grinder consists of a main machine, an auxiliary machine and an electronic control box. The BSP Grinder has the characteristic of winnowing, no screen and no net, and the particle size of the processed material is even. Continuous production process, can undertake the grinding of chemical products. Food, medicine, cosmetics, plastics, dyes, resins, grains, etc. .
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
The materials are sent to the air inlet bypass pipe by the feeding device controlled by the frequency converter, and then pneumatically transported to the classifier. After entering the mill, the materials are first sent to the classifier, and the materials of any specification are directly sent to the product filter through the classifier. The coarse material removed by the classifier falls into the grinding area between the rotor hammer and the surrounding grinding track. The particle size will not decrease until the particles are fine enough to be taken away by the air flow in the mill and then sent to the classifier. This internal recirculation is repeated until the material is fine enough to pass through the classifier and leave the air classifier. The product is separated from the delivered air in the filter. The product is discharged through the rotary valve, and the clean air enters the system fan and atmosphere through the filter element.
Advantages:
1. Compact design, reasonable structure. There is a grading mechanism inside the material, which can be ground and graded at the same time to reduce energy consumption.
2. Equipped with fan continuous heat dissipation, suitable for grinding heat-sensitive materials.
3. Strong adaptability, narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Adjust the speed or air volume of the classifier without stopping to obtain the required product with uniform particle size distribution.
5. The top cover of the main machine is opened with pneumatic springs, and the structure of the main machine should be able to open to both sides, so that there will be no obstacles when cleaning and repairing internal parts.
6. The main abrasive parts are made of high-quality alloy tool steel, which greatly extends the service life or replacement cycle of the wearing parts.
7. The bearing system adopts imported high-speed precision bearings, which runs smoothly and has low vibration and noise.
8. The pipeline adopts rapid disassembly structure, which is quick and convenient for disassembly and cleaning.
9. Equipped with cyclone separator and trap, there will be no dust flying during the production process. The dust removal cloth bag can effectively collect the fine powder in the air flow and meet the clean and environmental protection requirements of the exhaust gas emission.
10. The fine powder collected through the dust removal cloth bag can be effectively recycled. This reduces material loss.
