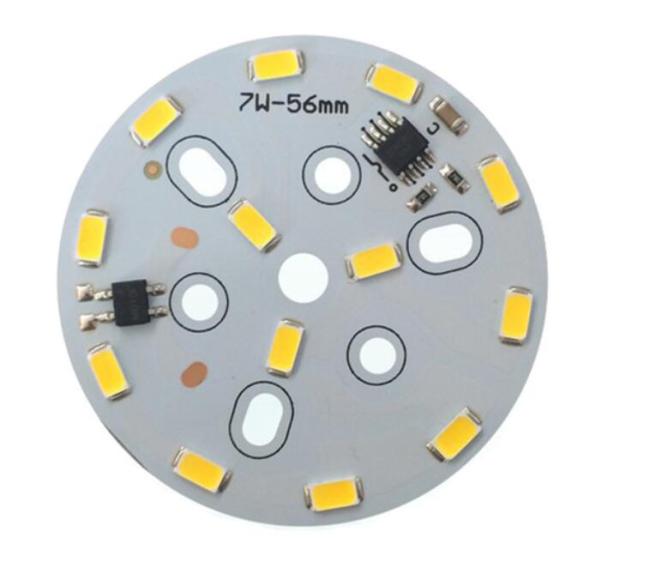

White Soldermask Aluminum PCB Board 1.0W Thermal Conductivity Metal Core 1.6mm Thickness
White Soldermask Aluminum PCB Board 1.0W Thermal Conductivity Metal Core 1.6mm Thickness
At Linked Electronics, we have specialised in the assembly of Printed Circuit Boards for over two decades. Linked Electronics uses the very latest manufacturing technologies to reduce production costs whilst maintaining the very highest quality standards. Our specialist team have repeatedly demonstrated their ability in this field.
Our service is geared towards your requirements and we consider no job too small and no turnaround too short notice. We pride ourselves on being flexible and creative and have the experience required to get around those tricky assembly issues. We don't see problems, we devise solutions.
For a fast competitive quote email sales@linked-elec.com or call +86 755 2553 8256.
Aluminum PCB Specification
| Product Name | Aluminum LED PCB |
| Material | Aluminum 5052 |
| Layer Count | 2 layer |
| Spec | 1.6MM, 1OZ, White Soldermask, Black Legend, OSP |
| Lead Time | 6 Working Days |
Why Choose Linked Electronics
1. We offer low-cost RoHS compliant PCB prototypes, minimum order is one unit.
2. Instant online quote. Our sales representative will quote in 2 hours
3. The lead time is considered as manufacturing time + shipping time. 4. 100% satisfaction guarantee, or your money back[1].
4. Linked electronics allows up to two different circuit boards to be put on the same panel. This is free of charge.
5. Linked carry out a free file review. You will be notified if we find that your design violates our technical requirements or has errors.
6. You can track your PCB order status online, so you are informed of every step of your order.
7. Linked Electronics is a full PCB service provider. Our services include PCB manufacturing, PCB assembly, components sourcing, stencil and enclosure. We also provide turnkey design service, from specification to final production.
8. Free manufacturability and testability report to ensure that your PCB prototype can be manufactured and assembled in the most expedient and cost-effective way
9. We know your concern. NDA(non-disclosure agreement) will safeguard your intellectual property
Our Capability
| Item | Capability | Remark | ||
| Layer count | 2~30 layer | |||
| Lamination | FR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect | |||
| Thickness (THK) | 0.2mm≤THK≤6.0mm | |||
| Smallest hole (mm) | 0.15mm | |||
| Aspect Ratio | 13:1 | |||
| Max dimension | Single or 2-layer | 600 x 1000 mm | ||
| Multi-lyr | ≤6L | 600 x 900 mm | ||
| ≥8L | 500 x 600 mm | |||
| Gold THK | Hard Gold (u") | 50u" | ||
| Immersion Gold (u") | 4u" | |||
| Copper THK | Outer (oz) | 6oz | ||
| Inner (oz) | 6oz | |||
| Smallest trace width / space (mil) | 3/3 mil | |||
| Annual ring | Via hole | 3mil | ||
| Component hole | 6mil | |||
| Copper to edge spacing | 0.25mm | |||
| Min trace width / space (mil) | Base Copper (oz) | Min trace width / space (mil) | ||
| 0.5 | 3/3 | |||
| 1 | 4/4 | |||
| 2 | 5/5 | |||
| 3 | 7/7 | |||
| 5 | 9/9 | |||

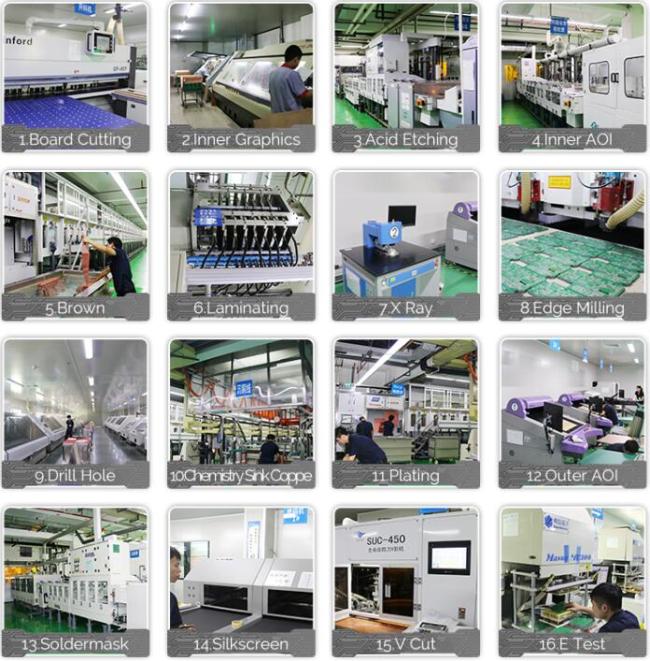

The PCB fabrication Process Flow
