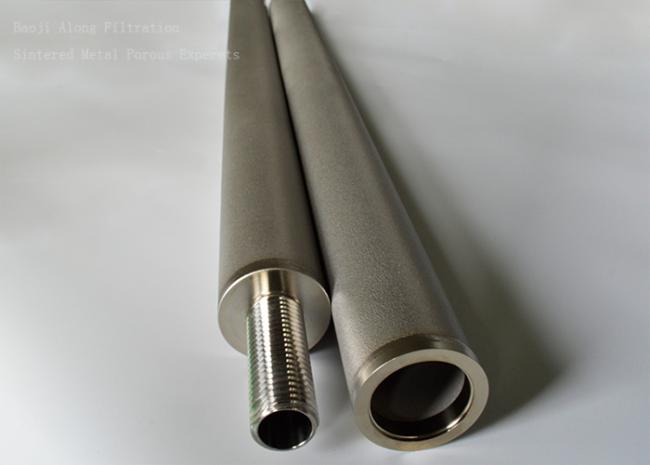

NPT Connected 10um Hot Gas Sintered Filter Cartridge
10 Um Hot Gas Sintered Filter Cartridge For Resistant Corrosion Gas

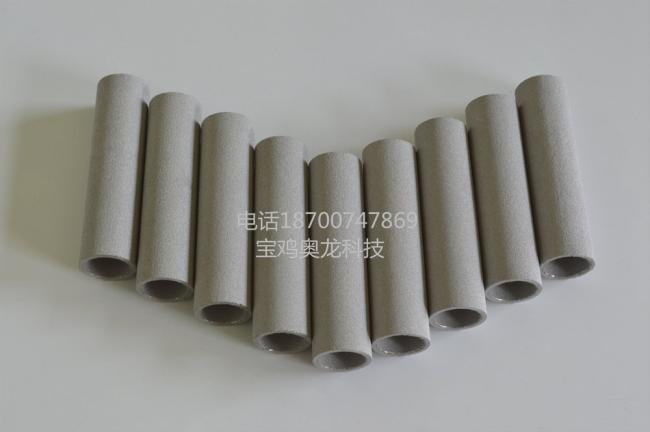

Sintered porous metal Filter elements
Baoji Along offers a wide range of cleanable all-metal powder filter cartridges for optimum filtration in critical applications. Our filter cartridges perform in liquid and gas applications under the harshes conditions of temperature, pressures, and corrosion.
Baoji along sinter metal filter cartridge is manufactured with metal powder without adding adhesive. Formed under isostatic cool pressing and sintered with a high-temperature vacuum. The size and distribution of the pores can be controlled by the metal powder.
Porous metal filter elements in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require.
Features
--high permeability
--mean pore size&particle size retention
--capillary attraction
--mechanical properties&thermal conductivity
--high-temperature resistance, up to 900℃
--corrosion resistance
--good backflush flow and durable performance
| Dimensions | Length: available |
| Standard diameter | Diameter:18/20/30/40/50/60/70/ 75/80mm |
| Materials | Titanium,316LSS, Hastelloy, Inconel600, |
| Connections | NPT, M20, M30, BSP, and custom options available |
| Filtration rate | 1,5,10,20,30,40,50,70um |
| Porosity | 25%-45% |
