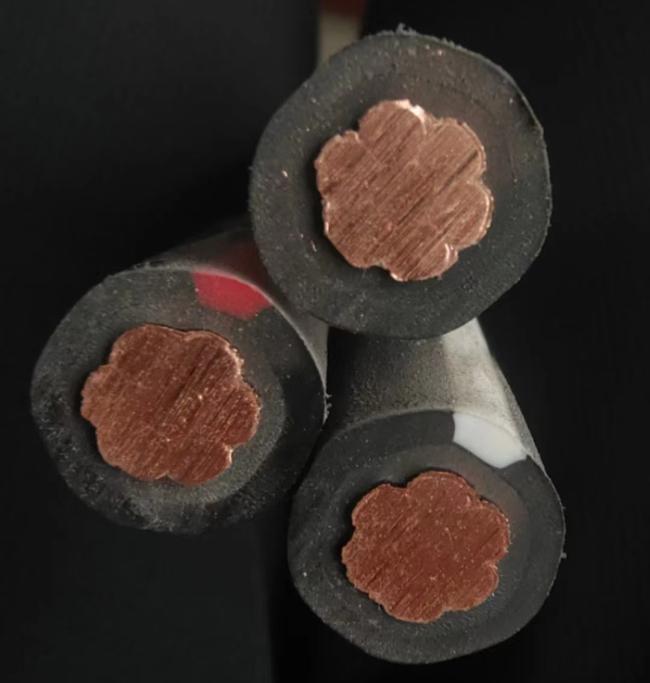

600V CVT Cable 38mm2 60mm2 100mm2 Triplex Cross-Linked Polyethylene Insulation Vinyl Sheath CVD CVQ CVT Cable
600V CVT Cable 38mm2 60mm2 100mm2 Triplex Cross-Linked Polyethylene Insulation Vinyl Sheath CVD CVQ CVT Cable
Product Description
Allowable current is bigger than general CV cable, and, for strand structure, workability, construction characteristics improve.
Summary
Standard concerned: JIS C 3605
Insulator best allowable temperature: 90 degrees Celsius
Identification: 2 feeling (black, white)
Sheath: Black is gage
Features
Demand increases in place of low-pressure CV multi-core (collective sheath form).
We have features same as CV, but are superior to CV at allowable current, point of ease of terminal work.
Ground fault becomes hard to shift to short circuit accident between line.
Fire resistant cable (FD-CVD, FD-CVT, FD-CVQ) satisfying spread of fire-related examination (equal to IEEE Std. 383 perpendicular tray combustion examination) of JIS C 3521-resistant prepares
|

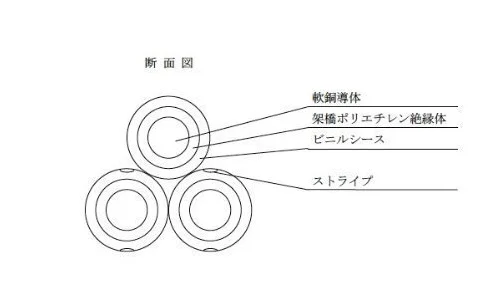

Cross Section Area
|
Conductor Diameter
|
Insulation Thickness
|
Jacket Thickness
|
Overall Diameter
|
Conductor Resistance
|
Weight
|
|
mm2
|
mm
|
mm
|
mm
|
mm
|
Ω/km
|
kg/km
|
|
8
|
3.6
|
1
|
1.5
|
8.6
|
2.36
|
415
|
|
14
|
4.4
|
1
|
1.5
|
9.4
|
1.34
|
585
|
|
22
|
5.5
|
1.2
|
1.5
|
11
|
0.849
|
850
|
|
38
|
7.3
|
1.2
|
1.5
|
13
|
0.491
|
1350
|
|
60
|
9.3
|
1.5
|
1.5
|
15.5
|
0.311
|
2000
|
|
100
|
12
|
2
|
1.5
|
19
|
0.187
|
3250
|
|
150
|
14.7
|
2
|
1.5
|
22
|
0.124
|
4650
|
|
200
|
17
|
2.5
|
1.7
|
26
|
0.0933
|
6200
|
|
250
|
19
|
2.5
|
1.8
|
28
|
0.0754
|
7550
|
|
325
|
21.7
|
2.5
|
1.9
|
31
|
0.0579
|
9700
|
|
400
|
24.1
|
2.5
|
2
|
34
|
0.0471
|
12000
|
Certifications
Packing

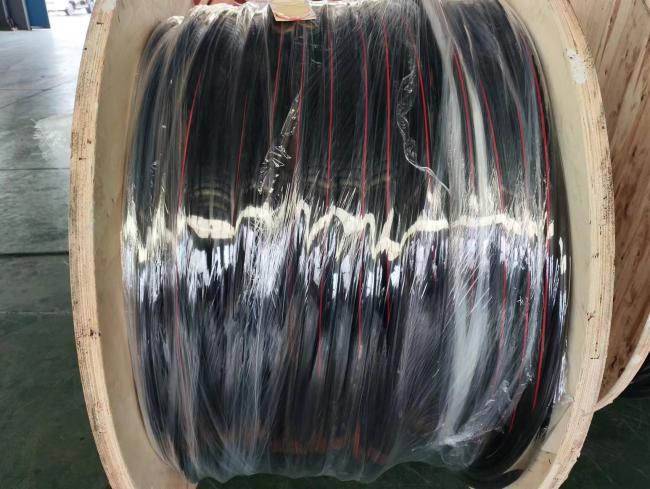

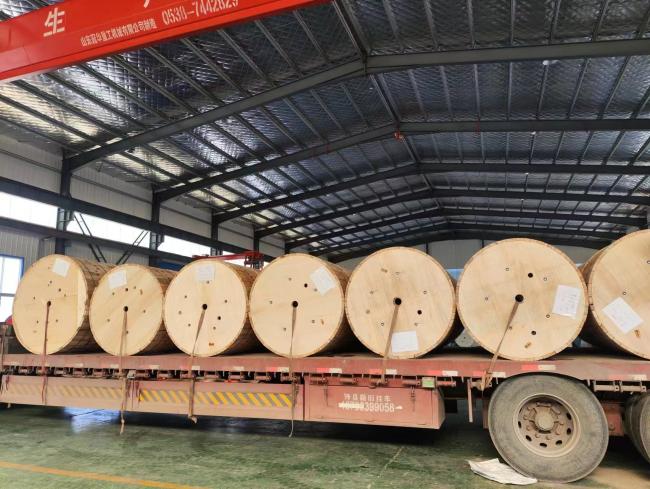

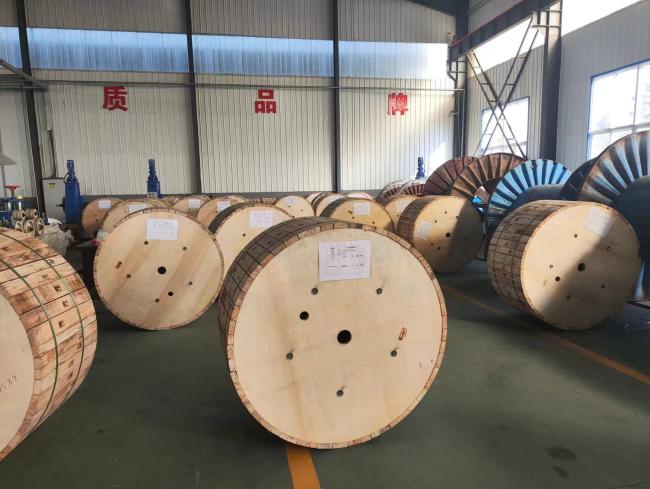

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Qingdao, or other ports as per your requireents.
Sea freight:
FOB/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
