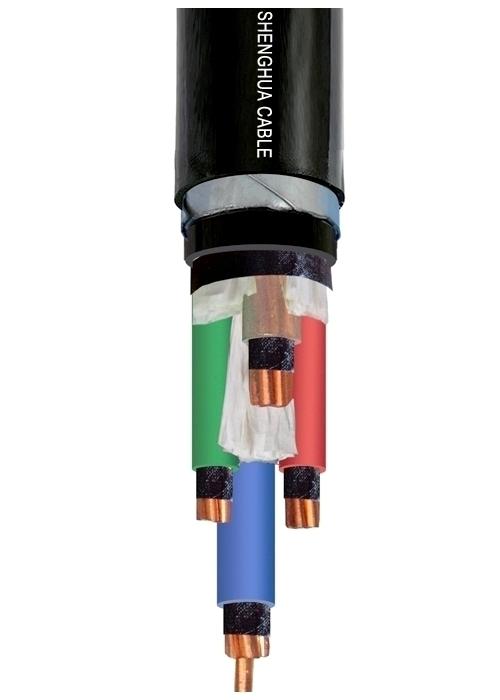

NH-YJV22 FRC Armoured Power Cable Mica Tape Fire-proof Steel Tape Armoured 1.5mm2-600mm2 Electric Cable
NH-YJV22 FRC Armoured Power Cable Mica Tape Fire-proof Steel Tape Armoured 1.5mm2-600mm2 Electric Cable
CU/Mica/XLPE/STA/PVC, IEC 60331
IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
CE, CCC, KEMA
Constructions
Rated Voltage: 0.6/1KV
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 630 mm2 Multi core: 0.75 mm2 ~ 400 mm2
Number of cores: 1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Armour: Galvanized Steel Tape
Sheath: PVC or LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature :100 meters per roll or wooden drum or as per requirement
Production Capacity :20 kilometer/ day
MOQ : 1000 meters for small size, 500 meters for big size
Applications: Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards: IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
Technical data: Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
Specification Of Sioplas Insulated Power Cable
| Type | Core Number | Rated voltage KV | |||
| 0.6/1 | 1.8/3 | 3.6/6,6/6,6/10 | |||
| Cu Core | Al Core | Manufacturing Range(Nominal Cross-section Area) | |||
| YJV,YJY | -- | 1 | 1.5-630 | 10-630 | 10-630 |
| -- | YJLV,YJLY | 2.5-630 | 10-630 | 10-630 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 10-630 | 10-630 | 10-630 | |
| YJV,YJY | -- | 2 | 1.5-185 | 10-185 | 10-150 |
| -- | YJLV,YJLY | 2.5-185 | 10-185 | 10-150 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-185 | 10-185 | 10-150 | |
| YJV,YJY | -- | 3 | 1.5-400 | 10-185 | 10-300 |
| -- | YJLV,YJLY | 2.5-400 | 10-400 | 10-300 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | 10-300 | |
| YJV,YJY | -- | 4 | 4-400 | 10-400 | -- |
| -- | YJLV,YJLY | 4-400 | 10-400 | -- | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | -- | |
| YJV,YJY | -- | 5 | 4-185 | 10-185 | -- |
| -- | YJLV,YJLY | 4-500 | 10-500 | -- | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
| YJV,YJY | YJLV,YJLY | 3+1 | 4-400 | 10-400 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | -- | |
| YJV,YJY | YJLV,YJLY | 4+1 | 4-500 | 10-500 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
| YJV,YJY | YJLV,YJLY | 3+2 | 4-500 | 10-500 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
Operating characteristics
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;
2.Installing temperature of cable should not be less than 0°C;
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
