Rubber Insulation Carbon Dioxide 25mm2 Welding Torch Cable
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-40days according to quantity
Brand:
Yi Lan
Product Description

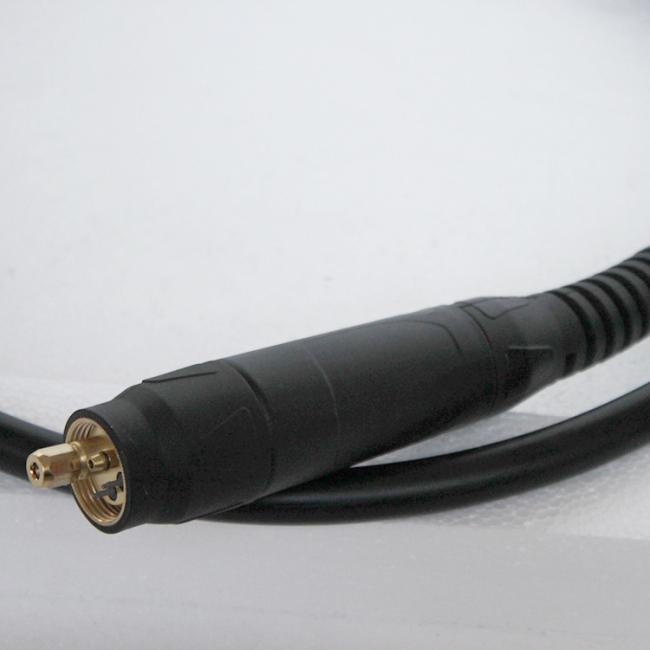

Rubber 25mm2 Carbon Dioxide Welding Torch Cable
25mm2 Flexible Welding Torch Cables
Rubber sheathed cables are widely used in various electrical equipment, such as household appliances, motors, electrical equipment and mobile power cords for household appliances, and can be used in indoor or outdoor environments.
Rubber cable model use
According to the mechanical external force on the cable, the product structure can be divided into three categories: light, medium and heavy, with proper connection on the cross section.
| NAME | MODEL | USAGE | FEATURE |
| Lightweight rubber cable | YQ,YQW | Household appliances, small electric equipment | Soft, light and good bending performance; |
| YQW has weather resistance and certain oil resistance | |||
| Medium-sized rubber cable | YZ,YZW | Industry, widely used in agricultural electrification | YZW has weather resistance and certain oil resistance |
| Heavy rubber cable | YC,YCW | Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. | Has good versatility, complete series specifications, good performance and stability; |
| YCW has weather resistance and certain oil resistance | |||
| Waterproof rubber cable | JHS,JHSB | Diving motor | Good bending performance, can withstand frequent movement |
| Welding machine rubber cable | YH,YHF | Electric welding machine | / |
| / | YHD | Tinned power cable for field use | / |
Use conditions of rubber flexible cable
1) Rated voltage Uo / U:
YQ / YQW: 300 / 300V
YZ / 60245IEC53 YZ: 300 / 500V
YZW / 60245IEC 57 YZW: 300 / 500V
YC / YCW / 60245 IEC 66 YCW: 450 / 750V
2) The long-term allowable working temperature of the iron core does not exceed 65℃
3) Conductor: Copper 16/102/0.16mm
4) Inner tube: rubber
5) Control line: 3 control lines
6) Outer sheath: rubber
Application field
Secondary pressure welding leads in heavy or mining applications
AC power does not exceed 600 volts in power applications
Manufacturing Standards
IEC 60245 and China National Standard GB5013
We can also produce welding cables according to international general standards (such as ASTM, BS, DIN, NF and AS/NZ).
Technical parameters
| Welding cable Standard: IEC 60245 | ||||||
| Nominal section area | No./diameter of stranding | Nominal sheath thickness (mm) | Overall diameter | Max. conductor resistance at 20℃ | ||
| (mm2) | (mm) | (mm) | (Ω/km) | |||
| Min. | Max. | Without tinned | With tinned | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 1.19 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 0.78 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 0.552 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 0.39 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 0.276 |
| 95 | 2297/0.20 | 2.6 | 17 | 22 | 0.198 | 0.204 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 0.164 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 0.132 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 0.108 |
| 240 | 1908/0.40 | 3.8 | 25 | 35 | 0.0801 | 0.0817 |
