Hydraulic Lift Table With Anti Skid Platform Lifting Up To Different Mezzanine Or Level.

Hydraulic Lift Table With Anti Skid Platform Lifting Up To Different Mezzanine Or Level

Hydraulic Mezzanine Lift Table Description:

• VRCs are “vertical reciprocating conveyors” that move materials, not people. Install a mezzanine lift table to move materials in factories, warehouses, industrial plants, institution, or anywhere else that products or supplies need to go from one level to another.

• Guide columns, carriage, and mechanical/hydraulic actuating mechanisms are the components that enable all mezzanine lift tables to be installed for through-floor, interior, or exterior applications. This provides safe and convenient access between levels in multiple story buildings, and to/from mezzanines, balconies, and basements.

Main Features:

• 1. Reinforced anti skid diamond platform, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong construction
• 3. Anti-skid high-strong diamond surface, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option (hinges pin type or sleeve type)
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with anti-explosion valve
• 8. Safety protected 2 for optional, with Safety toe guard full sides to protect users fi need
• 9.  Extra requiremetns: if need, safety bellow prevent the scissor lift from water, dust and people invading into the lift platform

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Anti skid diamond surface plate steel
• Main Support: 10# I beam according the loading capacity and lifting height
• Deck lip platform steel thickness:6mm/8mm/10mm diamond plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic Mezzanine Lift Table Precautions:

1. Emergency valves

2. Anti- Explosion safety valves between oil cylinder and oil tube

3. Number of floor layers indicator

4. Door inter-locking device if indeed need

5. Over height protect

6. Running indicator

7. Over load alarm if need

8. Manual decline valve

9.safety bellow if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse, factory,etc.

2. Pit-mounted Hydraulic Lift Table Application: cargo lifting as elevator, etc.

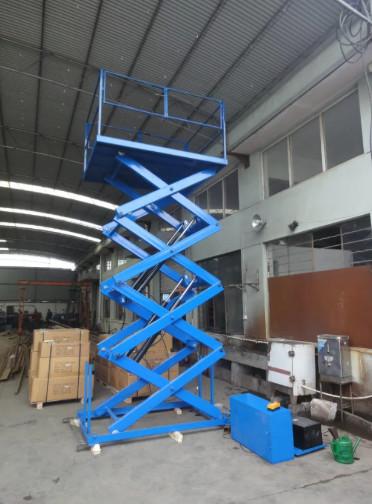

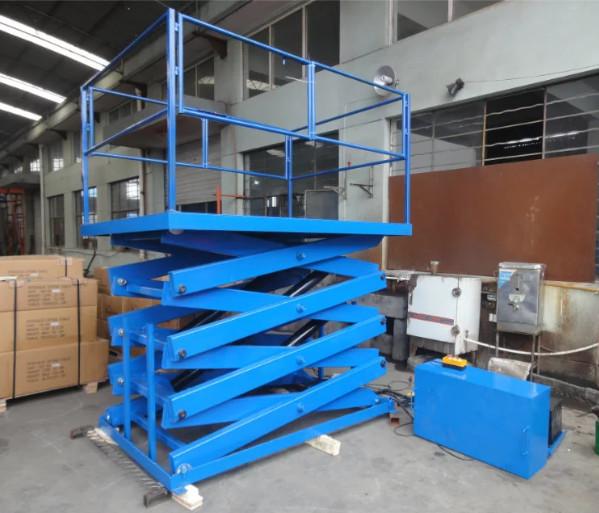

Hydraulic Mezzanine Lift Table & Sketch:
