Stainless Steel Scissor Lift Table, Hydraulic Stainless Steel Lift Levelers In Highly Corrosive Environment Application
Stainless Steel Scissor Lift Table, Hydraulic Stainless Steel Lift Levelers In Highly Corrosive Environment Application
Stainless Steel Scissor Lift Table Description:
-
King-Lift has a selection of stainless steel materials handling equipment including stainless steel lift tables, stainless steel levelers and stainless steel pallet truck that can be shipped quickly (two weeks), priced right and of the highest quality. King-Lift stainless steel equipment is designed to with stand the rigorous sanitation requirements of food processing, chemical, and pharmaceutical industries. These products allow you to make your material handling applications faster, safer, and easier while meeting your various maintenance needs.
| Model | Capacity(KG) | Min.height | Max.height | Platform size L*W(mm) |
Lifting time (s) |
Motor (kw) |
Self-weight (kg) |
| KLSJG1-5 | 1000 | 780 | 5000 | 2500*2000 | 62 | 4.0 | 2400 |
| KLSJG3-1.6 | 3000 | 450 | 1800 | 3000*2000 | 32 | 4.0 | 1650 |
| KLSJG3-2.5 | 3000 | 550 | 3050 | 2500*1500 | 50 | 3.0 | 1600 |
| KLSJG4-3 | 4000 | 720 | 3000 | 2200*1500 | 30 | 4.0 | 1700 |
| KLSJG4-5 | 5000 | 1000 | 5000 | 3000*2500 | 65 | 7.5 | 4500 |
| KLSJG7-1.6 | 7000 | 980 | 1600 | 3000*2000 | 25 | 5.5 | 2480 |
Noted: Usually table with hydraulic lift width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!
Main Features:
- 1. Reinforced stainless steel diamond work table
- 2. Heavay duty & high strong deck construction
- 3. Anti-skid stainless steel chequered platform or flat steel plate
- 4. Full width one -piece lip option (hinges pin type or sleeve type)
- 5. Heavy duty high pressure cylinders
- 6. First class hydraulic power unit, good seal capacity and long life
- 7. Safety protected 1, with Explosion Proof Lock Valve
- 8. Safety protected 2 for optional, with Safety toe guard to protect users
Parameters & Details:
- Electric system: Schneider contactor, CHINT electrical components ( Made In China)
- Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
- Scissor Arm Support: Stainless steel tube
- Platform Surface : Antiskid stainless steel checkered plate steel or flat stainless steel plate
- High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose
Optional Configuration:
- Hydraulic Power Pack: China power pack or imported power pack as your requirements
Applications:
1. Site: Work Shop, logistic center, warehouse loading bay, etc.
2. Stainless Steel Scissor Lift Table Application: Lifting and Loading/unloading Cargo etc.
Stainless Steel Scissor Lift Table Safety Precautions:
1. Emergency valves
2. Anti- Explosion safety valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm

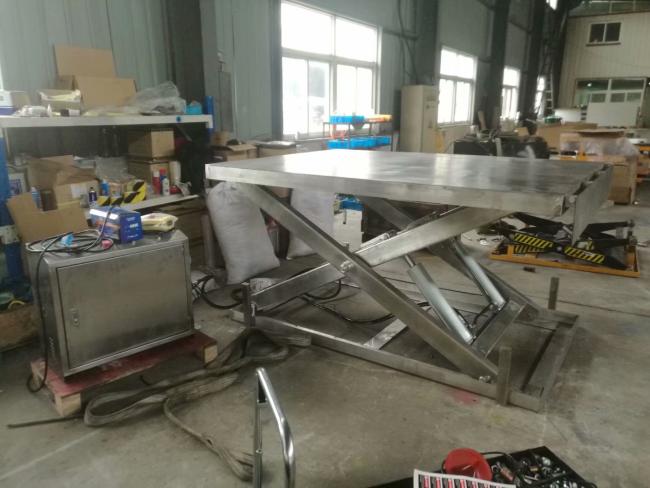

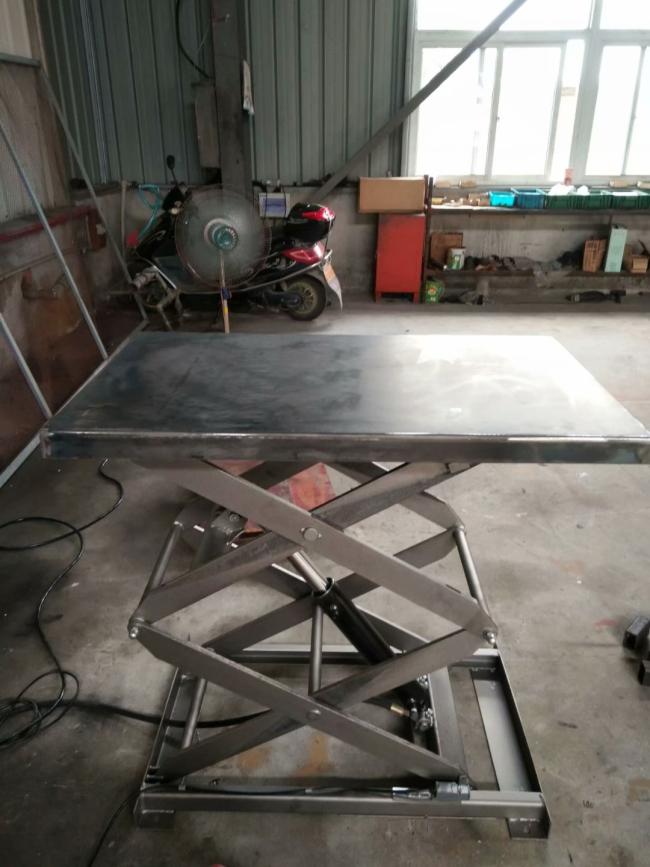

Stainless Hydraulic Lift Table Sketch And Pictures:
