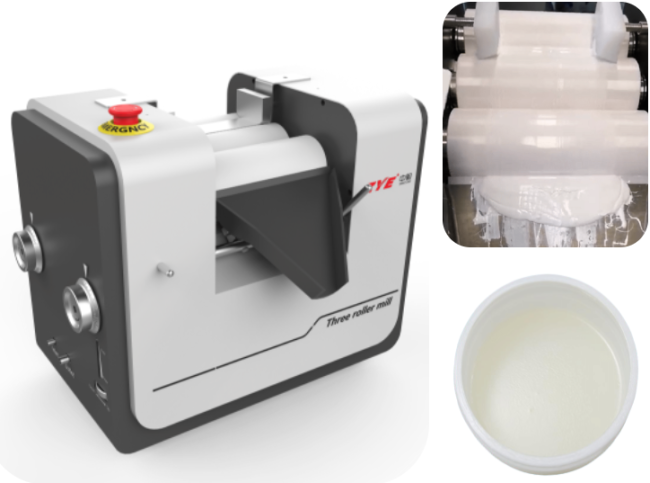

500RPM Three Roller Mill 20L/h 3 Roller Mill Servo Control Adjustable Speed

Installation of three-roller machine

The three-roller machine can be installed horizontally or slightly inclined. It achieves the grinding effect through the mutual extrusion of the surfaces of the three horizontal rollers and friction at different speeds. The steel drum can be hollow and cooled by water. Add material between the middle and rear rolls. Because the three drums rotate in different directions (speed increases from back to front), it has a good grinding effect. After grinding, the material is scraped off by scrapers installed in front of the front rollers.

Product specification

Application:
Hand Three Roller Mill/Manual Three Roller Mill is suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness. It achieves required grinding effect by the friction and crushing among the three horizontal rollers rotating at different speeds. The clearance between the rollers is adjusted manually. It is equipped with emergency brake button to prevent equipment damage. The roller is a casting with special hard alloy or ceramic materials.

Main feature

1. Roller Material: ZrO2/ Al2O3/ SiC/ Si3N4, Nanoscale Ceramic Roller

2. Ceramic Roll Speed: 0-500RPM

3. Power Configuration: Servo motor, Steady moment, Safe and reliable

4. Adjust the gap between two rolls by single handle,

Ceramic rollers parallel movement, more convenient

5. High precise (minimum 1μm, depend on materials)

6. Ceramic roller precision: concentricity < 2 micron,

linear degree < 2micron, exterior planeness < 0.3micron

7. Easy-cleaning roller

8. Hopper(optional)
