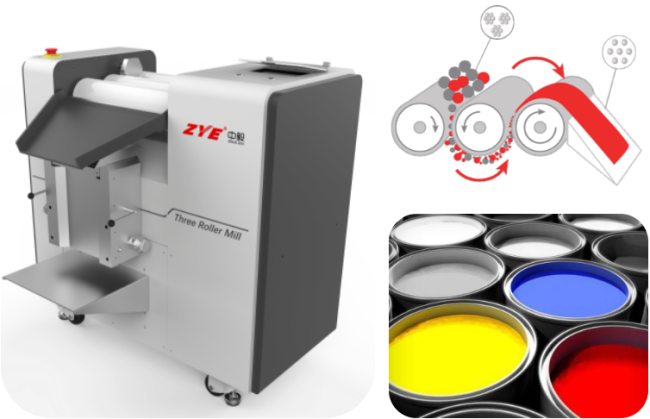

Pigment Printing Ink Automatic Three Roll Mill Horizontal Roller Mill

The scope of application of the three-roller machine
The three-roll mill is mainly used for various high-grade pastes, such as paints, inks, plastics, pigments, cosmetics, electronic pastes, solar silver pastes, aluminum pastes, glass solder pastes, etc. It is especially suitable for the grinding of products with high dispersion viscosity and high particle size required by centrifugal casting of chilled gold cast iron rolls. The crystal phase is dense, the strength is high, the surface hardness is high, and the wear resistance is good.

Product specification

Working Principle:

The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backword. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three roll62ers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size. Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.

Main feature

1. Roller Material: Al2O3/ SiC/ ZrO2, Import Nanoscale Ceramic Roller

2. Ceramic Roll Speed: 0-500RPM

3. Power Configuration: Siemens motor, High torque, Stable operation, Convenient and safe

4. Selection Configuration: The roller can be heated or cooled (Optional)

5. High precise (minimum 1μm, depend on materials)

6. Ceramic roller precision: concentricity < 3micron,

linear degree < 3micron, exterior planeness < 0.3micron

7. Easy-cleaning roller

8. Hopper(optional)

9. Touch screen

Package&Shipping

- Packing: 1 set / wooden box
- Outside package: Standard export wooden

- Inner package:Shock-proof plastic film
