Adhesive Planetary Mixer Multi Parameter Setting Constant Speed Ratio
Adhesive planetary mixer Multi-parameter setting Constant speed ratio

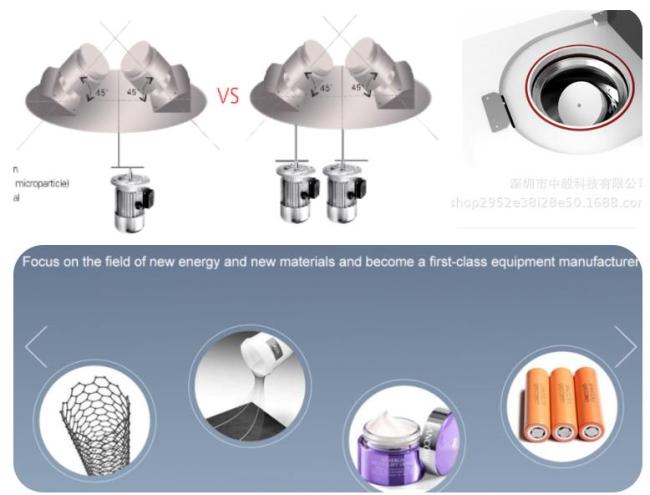

Working principle and characteristics of planetary mixer:
Solve problems that traditional mixing equipment can't handle. The slurry and powder of different components are fully mixed and uniform, without stratification, no bubbles, high power, and a processing time of 3 minutes, which meets the requirements of high quality mixing process.
Product specification
| SPECIFICATION FOR ZYMB-7000VS PLANETARY MIXER | |
| Container Capacity | 6000ml |
| Revolution Speed | 100-850RPM |
| Protection | Door cover, Vibration, Over load, Vacuum leak |
| Multi-parameter Group | 0-8 recipes, |
| 3 parameter/recipe | |
| Size | L1350*W950*H1080mm |
| Working Capacity | 5000g |
| Rotation Speed | Adjustable |
| Operation Type | Human-machine Interaction Mode |
| Power/Voltage | 6.0KW/380V |
| N.W. | 255KG |
Main feature
1. Single cup
2. Multi-step parameter
3. Various adapters, customizable
4. Suitable for research and development, volume production
5. Unlimited scale of revolution and rotation, wide range applicable scope
6. Vacuum: 250L/min, approx.-99kpa (when the altitude is zero metres)
Application
Our planetary mixer is widely used for semiconductor, touch screen, LED, photovoltaic, new materials and chemistry industry.
Like Epoxy Resin, Adhesive Agent, Silver Paste, Soldering Paste, LED Phosphor Material, Carbon Nanotube and so on.
Especially for high viscosity and good fineness products.

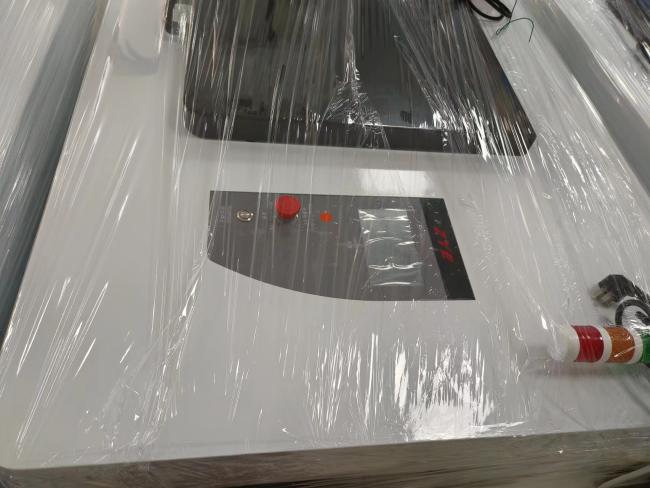

Package&Shipping
-Packing: 1 set, wooden box
-Outside package: Standard export wooden
-Inner package: Shock-proof plastic film
