Single Handle Three Roller Mill 50mm Diameter Ceramics Roller Variable Speeds
Three Roller Mill 50mm Diameter Ceramics Roller Variable Speeds Single Handel
Introductions:

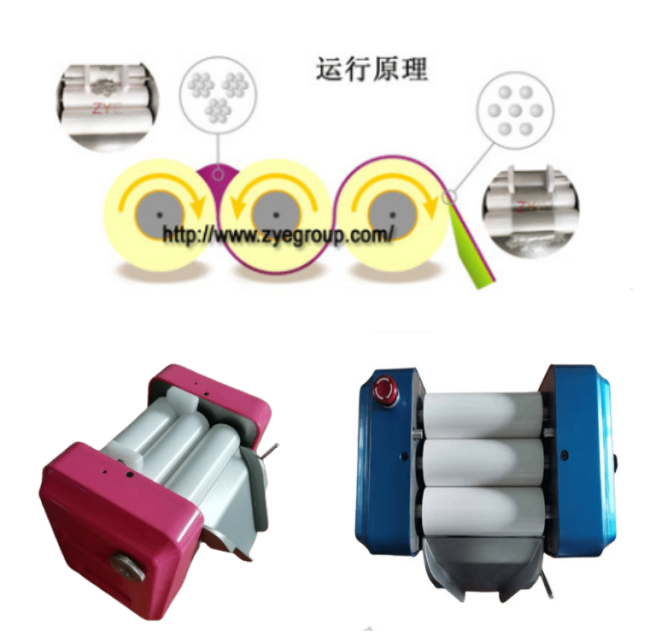

It uses shear force created by three horizontally positioned rolls rotating in opposite direction and different speeds relative to each other, in order to grind, disperse and homogenize.
Quick details:
1. Roller Material: ZrO2/ Al2O3 Nanoscale Ceramic Roller.
2. Ceramic Roll Speed: 0-500RPM,
3. Power Configuration: DC motor, Steady moment, Safe and reliable
4. High precise (minimum 1μm, depend on materials)
5. Ceramic roller precision: concentricity < 2 micron,
linear degree < 2micron, exterior planeness < 0.3micron
6. Variable speeds
7. Adjust the gap between two rolls by single handle, moment balance, easy to operate
Product specification
| SPECIFICATION FOR ZYTR-50 THREE ROLL MILL | |
| Diameter of Roller | 50mm |
| Roller Speed Ratio | 1:02:04 |
| Power/Voltage | 120W/220V |
| Size | L340*W190*H260mm |
| Ceramic Roll Speed | 0-500RPM |
| Length of Roller | 150mm |
| Power Configuration | DC Motor |
| Throughput | 0.02-5L/h |
| N.W. | 20KG |
| Ceramic Roll Spacing | 5-140 Micron |
Application
Our three roll mill is widely used for printing ink & coating, new material, chemistry, pharmacy & medical treatment, electronic industry, food and cosmetic. Like paint, ceramic paste, resin, chocolate, lipstick and so on. Especially for high viscosity and good fineness products.
Package&Shipping
-Packing: 1 set / wooden package
-Outside package: Standard export wooden
-Inner package:Shock-proof plastic film
