120W 500RPM Triple Roll Mill Nano Ceramic Single Handle Operation
120W 500RPM Triple Roll Mill Nano Ceramic Single Handle Operation
500RPM Triple Roll Mill Nano Ceramic Small Roller Single Handle Operation
Main feature
1. High precise (minimum 1μm, depend on materials)
2. Easy-cleaning roller
3. Variable speeds
4. Hopper(optional)
5. Adjust the gap between two rolls by single handle moment balance, easy to operate
6. Import Nanoscale ZrO2 ceramics rollers about 99.8%
7. Ceramic roller precision: concentricity < 2 micron,traightness < 2micron, exterior planeness < 0.3micron
Product specification
| SPECIFICATION FOR ZYTR-50 THREE ROLL MILL | |
| Product Name | Three Roll Mill |
| Equipment Model | ZYTR-50 (Brand: ZYE) |
| L/Hour | 0.02-5L/hour |
| Roller Material | ZrO2/ Al2O3, Import Nanoscale Ceramic Roller |
| Scraping Knife Material | ZrO2/Stainless/Polyester |
| Roller Specification | Roller Diameter: 50mm ; Roller Length: 150mm |
| Roller Precision | Concentricity/Straightness< 2 micron, Planeness<0.3 micron |
| Roller Speed Ratio | 1:2:4 |
| Ceramic Roll Spacing | 5-140 Micron |
| Ceramic Roll Speed | 0-500RPM(The max speed of the discharge rollers per minute) |
| Power Configuration | DC motor with speed regulator |
| Power, Voltage | 120W, 220V |
| Size | L340mm x W190mm x H260mm |
| Net Weight | 20kgs |
| Operation Feature | Adjust the gap between two rolls by single handle, Ceramic rollers parallel movement, more convenient |
Application
Three Roller Mill is suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness. It achieves required grinding effect by the friction and crushing among the three horizontal rollers rotating at different speeds. The clearance between the rollers is adjusted manually. It is equipped with emergency brake button to prevent equipment damage. The roller is a casting with special hard alloy or ceramic materials.
Package&Shipping

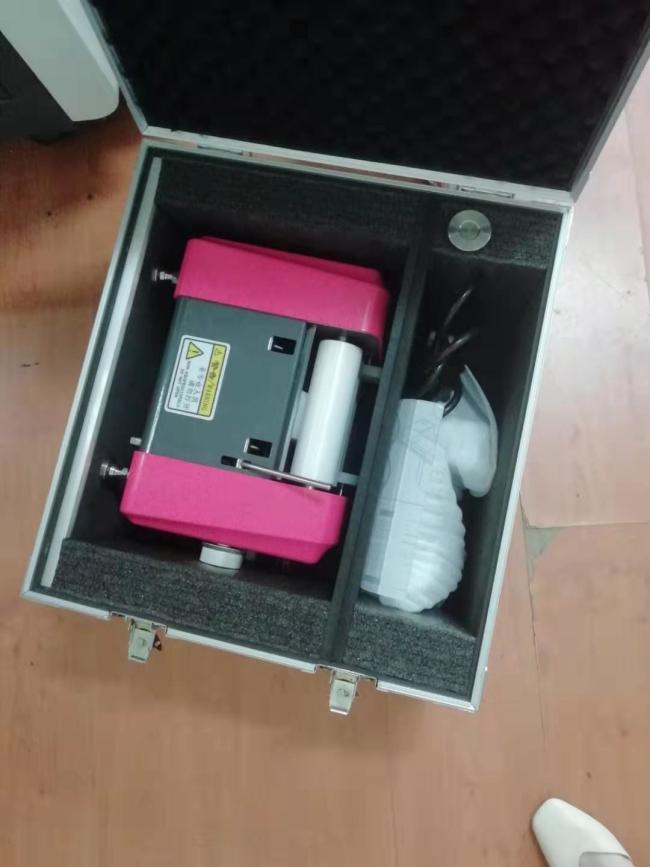

-Packing: 1 set / wooden box
-Outside package: Standard export wooden
-Inner package:Shock-proof plastic film
