Double Cups Planetary Centrifugal Mixer Adhesive Human Machine Interaction Mode
700ml * 2cups Double Cups Planetary Centrifugal Vacuum Mixer for Adhesive Soldering Paste
About US
ZYE is a leading precision equipment manufacturer focusing on both planetary mixing and high-end three roll mill in China.
Product specification

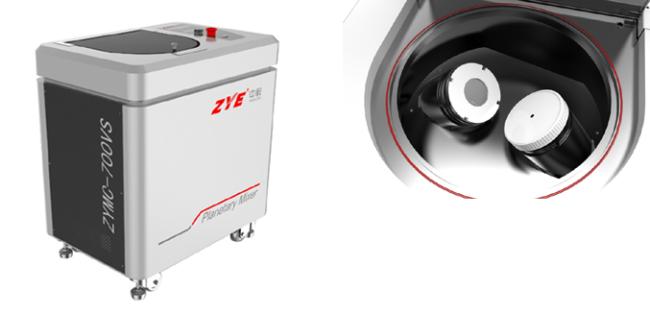

| SPECIFICATION FOR ZYMC-700VS PLANETARY MIXER | |||
| Container Capacity | 700ml*2cups | Working Capacity | 350ml*2cups |
| Revolution Speed | 130-2000RPM | Rotation Speed | Adjustable |
| Protection | Door cover, Vibration, Over load,Vacuum leak | Operation Type | Human-machine Interaction Mode |
| Multi-parameter Group | 0-5 recipes, 3part/recipes | Power/Voltage | 1-1.5KW/220V |
| Size | L730*W510*H700mm | N.W. | 125KG |
Application
Our planetary mixer is widely used for semiconductor, touch screen, LED, photovoltaic, new materials and chemistry industry.
Like Epoxy Resin, Adhesive Agent, Silver Paste, Soldering Paste, LED Phosphor Material, Carbon Nanotube and so on.
Especially for high viscosity and good fineness products.
Main feature
1. Double cups
2. Vacuum is included
3. Multi-step parameter
4. Various adapters, customizable
5. Suitable for research and development, volume production
6. Unlimited scale of revolution and rotation, wide range applicable scope
7. Vacuum: 80L/min, approx.-100kpa (when the altitude is zero metres)
8. Standard accessories:Cup:6pcs；Transmission belt:1 pcs(backup)
Package&Shipping
-Packing: 1 set, wooden box
-Outside package: Standard export wooden
-Inner package: Shock-proof plastic film
