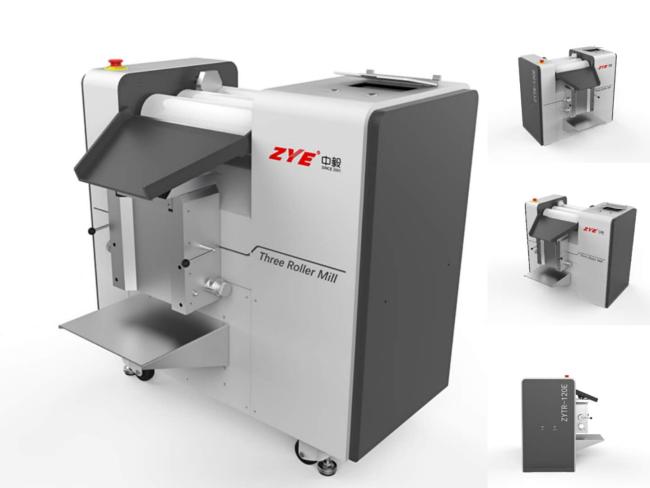

Easy-cleaning roller,Touch Screen Horizontal Roller Mill Three Roll Mill Machine



Product specification

Main feature
1. Roller Material: Al2O3/ SiC/ ZrO2, Import Nanoscale Ceramic Roller
2. Ceramic Roll Speed: 0-500RPM
3. Power Configuration: Siemens motor, High torque, Stable operation, Convenient and safe
4. Selection Configuration: The roller can be heated or cooled (Optional)
5. High precise (minimum 1μm, depend on materials)
6. Ceramic roller precision: concentricity < 3micron,
linear degree < 3micron, exterior planeness < 0.3micron
7. Easy-cleaning roller
8. Hopper(optional)
9. Touch screen

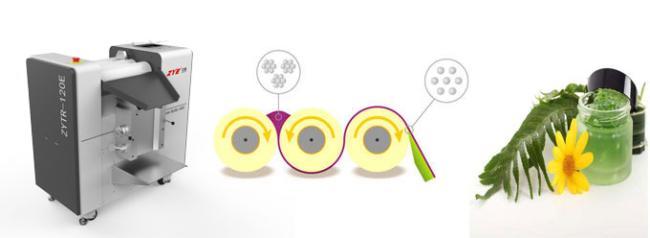

Working Principle:

The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backword. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three roll62ers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size. Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.




Some best practices in three roll milling
• The three roll mill is normally supplied completely assembled. When removing the mill from the shipping container, take special care to prevent marring the working surfaces of the rolls. Unblemished roll surfaces are critical to the proper functioning of the mill.
• Before the mill is operated, it should be bolted in place. A solid base is required, especially for production size models. When the mill is leveled and bolted in place, wiring and installation of electrical control components must be done by a qualified electrician.
• The apron’s take-off knife has a sharp cutting edge and should be handled with care. When correctly positioned, the knife is contacting the roll just above the centerline and is perfectly parallel to it.
• Perform testing to determine the ideal gap setting for your specific product in order to maximize throughput without sacrificing dispersion quality. • Do not run the mill dry. When product has almost run through, open the rolls and disengage the apron.
• Do not wear loose articles of clothing or any accessories that can get caught in the rolls.
• Roll journals are equipped with ball or roller bearings. It is good practice to lubricate the bearings on a monthly basis.

Package&Shipping

- Packing: 1 set / wooden box
- Outside package: Standard export wooden
- Inner package:Shock-proof plastic film
