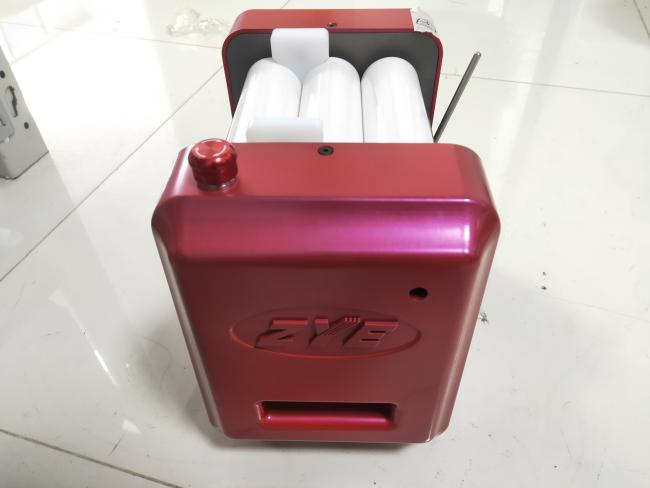

Al2O3 Roller 120W 5L/H Three Roll Mill Small Machine For Laboratory
Al2O3 Roll 120W 5L/H Three Roll Mill Small Machine Laboratory Available
Product specification
| Three Roll Mill | |
| Equipment Model | ZYTR-50 (Brand: ZYE) |
| Roller Material | ZrO2/ Al2O3, Import Nanoscale Ceramic Roller |
| Roller Specification | Roller Diameter: 50mm ; Roller Length: 150mm |
| Roller Precision | Concentricity/Straightness< 2 micron, Planeness<0.3 micron |
| Roller Speed Ratio | 1:2:4 |
| Ceramic Roll Spacing | 5-140 Micron |
| Ceramic Roll Speed | 0-500RPM(The max speed of the discharge rollers per minute) |
| Power Configuration | DC motor, Steady moment, Safe and reliable |
| Operation feature | Adjust the gap between two rolls by single handle, Ceramic rollers parallel movement, more convenient |
| Dimension | L340*W190*H260mm |
| Power /Voltage | 120W/ 220V |
| Weight | N.W.:20KG;G.W.:25KG |
Main feature
1. High precise (minimum 1μm, depend on materials)
2. Easy-cleaning roller.
3. Variable speeds
4. Hopper(optional)
5. Adjust the gap between two rolls by single hand,
moment balance, easy to operate.
6. Import Nanoscale ZrO2 ceramics rollers about 99.8%
7. Ceramic roller precision: concentricity < 2 micron,
linear degree < 2micron, exterior planeness < 0.2micron
Industry application
The three-roll mill is suitable for grinding products with high viscosity and fine particle size. It can be used in paint, ink, medicine, food, cosmetics, pesticides and other industries, with complete specifications, non-standard design, customization, and products are exported at home and abroad.
