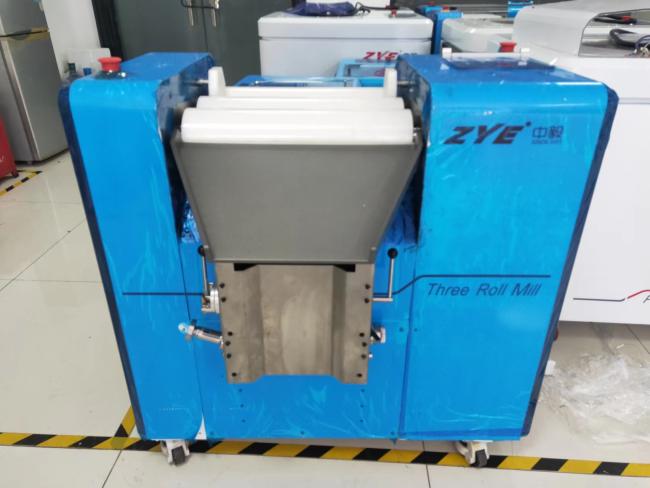

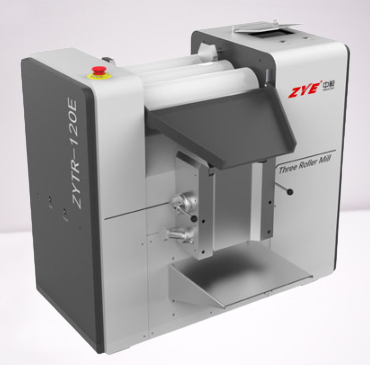

Fully automatic three-roll mill for pigment printing inks Rolls can be cooled and heated

Product specification

What are the functions of the three-roll mill for silicone rubber?

The production of liquid silicone rubber mainly goes through the kneading and mixing process of silicone polymer and filler. The kneading and mixing operation is not only the simple mixing of the materials, but also the extrusion and shearing of the materials during the kneading process, which actually promotes the penetration of fillers and polymers. Reinforcement can only be achieved if the filler is uniformly dispersed in the polymer. During the kneading process, the high-consistency material has strong shearing effect and high mixing efficiency. When the liquid silicone rubber is thinned through a three-roll mill, it is necessary to control the appropriate roller distance to ensure the shearing and kneading effect and avoid cutting the silicone polymer chain.

Application

Our three roll mill is widely used for printing ink & coating, new material, chemistry, pharmacy & medical treatment,

electronic industry, food and cosmetic. Like paint, ceramic paste, resin, chocolate, lipstick and so on.

Especially for high viscosity and good fineness products.

Main feature

1. Roller Material: Al2O3/ SiC/ ZrO2, Import Nanoscale Ceramic Roller

2. Ceramic Roll Speed: 0-500RPM

3. Power Configuration: Siemens motor, High torque, Stable operation, Convenient and safe

4. Selection Configuration: The roller can be heated or cooled (Optional)

5. High precise (minimum 1μm, depend on materials)

6. Ceramic roller precision: concentricity < 3micron,

linear degree < 3micron, exterior planeness < 0.3micron

7. Easy-cleaning roller

8. Hopper(optional)

9. Touch screen

Package&Shipping

- Packing: 1 set / wooden box
- Outside package: Standard export wooden

- Inner package:Shock-proof plastic film
