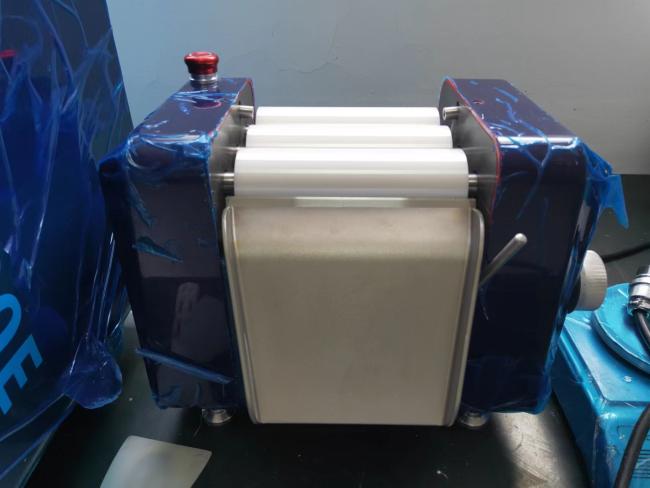

Nano Ceramic Three Roll Mill Single Side Operation for Cosmetics Materials
Three-roll mill Nano-ceramic three-roll mill Single side operation
Product specification
| SPECIFICATION FOR ZYTR-50 THREE ROLL MILL | |
| Product name | Three Roll Mill |
| Equipment Model | ZYTR-50 (Brand: ZYE) |
| Roller Material | ZrO2/ Al2O3, Import Nanoscale Ceramic Roller |
| Roller Specification | Roller Diameter: 50mm ; Roller Length: 150mm |
| Roller Precision | Concentricity/Straightness< 2 micron, Planeness<0.3 micron |
| Roller Speed Ratio | 1:2:4 |
| Ceramic Roll Spacing | 5-140 Micron |
| Ceramic Roll Speed | 0-500RPM(The max speed of the discharge rollers per minute) |
| Power Configuration | DC motor, Steady moment, Safe and reliable |
| Power configuration | 120W DC Motor and Knob Speed Regulator |
| Operation feature | Adjust the gap between two rolls by single handle, Ceramic rollers parallel movement, more convenient |
| Dimension | L340*W190*H260mm |
| Power /Voltage | 120W/ 220V |
| Weight | N.W.:20KG;G.W.:25KG |
Main feature
1. High precise (minimum 1μm, depend on materials)
2. Easy-cleaning roller.
3. Variable speeds
4. Hopper(optional)
5. Adjust the gap between two rolls by single hand,
moment balance, easy to operate.
6. Import Nanoscale ZrO2 ceramics rollers about 99.8%
7. Ceramic roller precision: concentricity < 2 micron,
linear degree < 2micron, exterior planeness < 0.2micron

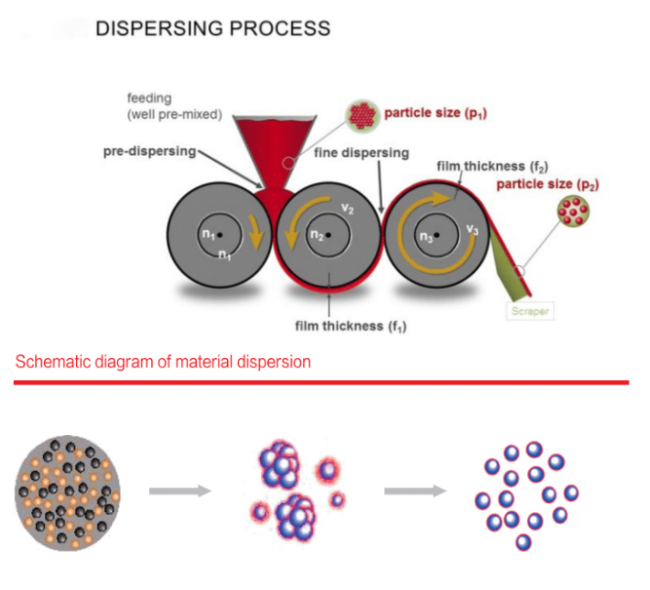

What are the functions of the three-roll mill for silicone rubber
The production of liquid silicone rubber mainly goes through the kneading and mixing process of silicone polymer and filler. The kneading and mixing operation is not only the simple mixing of the materials, but also the extrusion and shearing of the materials during the kneading process, which actually promotes the penetration of fillers and polymers. Reinforcement can only be achieved if the filler is uniformly dispersed in the polymer. During the kneading process, the high-consistency material has strong shearing effect and high mixing efficiency.
Package&Shipping
- Packing: 1set/ wooden box
- Outside package: Standard export wooden
- Inner package:Shock-proof plastic film
